๐ฆ Product Overview

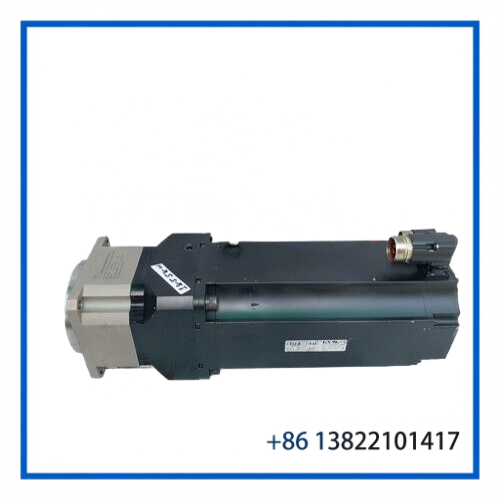

The B&R 8LSA78.R2030D600-3 is a high-power synchronous servo motor designed for industrial motion-control applications. It is identified as an AB180-S2-P2 configuration and is rated for 3000 RPM operation with IP65 protection.
Published equipment data identifies a 400 V motor rating, 27 A input current, 44 Nm rated torque, 52.1 A stall/current value, and 85 Nm peak torque. The motor is also specified with Class F insulation and a 40ยฐC ambient-temperature rating.
The available listing identifies the unit as Revision C8 and shows a weight of approximately 80.2 kg. The same configuration is associated with a holding brake and an AB180-S2-P2 gearbox/drive arrangement.
๐ง Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | B&R |
| Model / MPN | 8LSA78.R2030D600-3 |
| Motor Model | AB180-S2-P2 |
| Product Type | Synchronous Servo Motor |
| Motor Series | 8LSA |
| Revision | C8 |
| Rated Speed | 3000 RPM |
| Rated Voltage | 400 V |
| Rated Current | 27 A |
| Rated Torque | 44 Nm |
| Peak / Stall Current | 52.1 A |
| Peak / Stall Torque | 85 Nm |
| Phase | 3-Phase |
| Ingress Protection | IP65 |
| Insulation Class | Class F |
| Ambient Temperature | 40ยฐC |
| Cooling | Self-Cooled |
| Brake | Holding Brake |
| Gearbox / Gearhead | AB180-S2-P2 |
| Gear Ratio | 004:1 |
| Backlash | 5 arcmin |
| Weight | Approx. 80.2 kg |
| Condition | Used |
The 400 V, 27 A, 44 Nm, 52.1 A, 85 Nm and 80.2 kg values are reported in the available product data for this exact part number.
โ๏ธ Key Features
- 8LSA series synchronous servo motor
- 3000 RPM rated speed
- 400 V motor configuration
- 44 Nm rated torque
- Up to 85 Nm listed peak/stall torque
- IP65 enclosure protection
- Class F insulation
- Self-cooled motor construction
- Holding brake configuration
- AB180-S2-P2 mechanical configuration
- 004:1 gearbox ratio listed with the supplied configuration
- 5 arcmin backlash specification for the associated gearhead
- Revision C8 identification
The exact part number is also listed by industrial automation suppliers as a 3-phase, 3000 RPM, 560 V-class servo motor with self-cooling and holding brake. Because different sources present the voltage differently, the physical nameplate should be treated as the final reference for electrical commissioning.
๐ญ Typical Applications
The 8LSA78.R2030D600-3 is suitable for industrial machinery where high torque, controlled positioning, and repeatable servo motion are required.
Typical applications include:
- Industrial machine tools
- Automated production equipment
- Packaging machinery
- Material-handling systems
- Robotics and positioning equipment
- High-load motion axes
- CNC and precision machinery
- Industrial automation systems
Its IP65 protection makes the motor suitable for applications where protection against dust and water jets is required, provided the complete installation environment remains within the manufacturer’s operating limits.
๐ Identification References
When checking this motor against an existing installation, the following markings are useful:
- 8LSA78.R2030D600-3
- AB180-S2-P2
- Rev. C8
- 3000 RPM
- 400 V
- 27 A
- 44 Nm
- IP65
- E235396
- M5Z11 417143
The AB180-S2-P2 designation is also used for planetary gearheads, so buyers should confirm whether their requirement is for the complete motor/gearhead assembly or for a particular mechanical component.
โ Frequently Asked Questions
Q1: What is the rated speed of the 8LSA78.R2030D600-3?
The listed rated speed is 3000 RPM.
Q2: What is the rated torque?
The available product data lists 44 Nm rated torque and 85 Nm peak/stall torque.
Q3: Is the motor IP65 rated?
Yes. The exact listing identifies the motor as IP65.
Q4: Does it have a brake?
The available technical description identifies a holding brake. The actual brake condition and brake wiring should be checked on the physical unit before installation.
Q5: What does AB180-S2-P2 refer to?
AB180-S2-P2 is the associated mechanical/gearhead model designation shown with this motor configuration. Separate listings also identify AB180-S2-P2 as a planetary gearhead family.
Q6: Is this motor new?
The referenced eBay listing identifies the unit as used.
๐ Related B&R Servo Motor Models
The following are related B&R servo-motor references, but they should not be treated as direct substitutes without checking electrical, mechanical, encoder, brake, and drive compatibility:
- B&R 8LSA75.DB030S100-3 โ 8LSA synchronous servo motor
- B&R 8LSA78.R2030D600-3 โ 3000 RPM synchronous servo motor
- B&R 8LSA86.DB015D700-3 โ 8LSA synchronous servo motor
- B&R 8LSA35.DB030S200-3 โ synchronous servo motor with gearbox
- B&R 8LSA35.EB030D200-3 โ synchronous servo motor with holding brake
- B&R 8LSA34.R0030D200-0 โ 8LS series synchronous servo motor
- B&R 8LSA46.EB030D100-3 โ 8LSA synchronous servo motor
- B&R 8LSA55.DB030S200-3 โ synchronous motor
- B&R 8LSA57.DB030S100-3 โ synchronous motor
- B&R 8MSA3L.E2-73 โ 8MS series synchronous servo motor
These models are identified in current B&R servo-product listings and related industrial automation catalogs. They belong to the same broader B&R motion-control product family but have different electrical and mechanical characteristics.
๐ Compatibility & Ordering Notes
For replacement applications, compare the complete motor identification rather than matching only the 3000 RPM rating.
Recommended checks include:
- Motor part number: 8LSA78.R2030D600-3
- Motor model: AB180-S2-P2
- Revision: C8
- Rated voltage and current
- Rated and peak torque
- Brake configuration
- Shaft and gearbox dimensions
- Gear ratio
- Encoder/feedback arrangement
- Motor connector configuration
- Compatible B&R servo drive
Because this is a large servo motor assembly, the physical mounting dimensions and shaft/gearhead interface are especially important when replacing an installed unit.
For the referenced item, the seller listing identifies the condition as Used and the approximate weight as 80.2 kg.
