📍 Product Overview

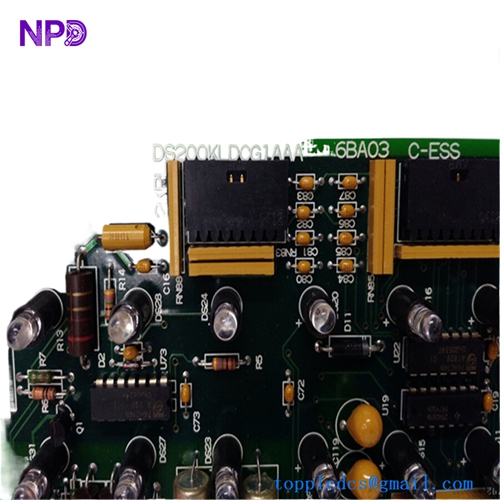

The GE Fanuc DS215KLDCG1AZZ03A (featuring the DS200KLDCG1AAA core circuit board) is a specialized local bus driver printed circuit board designed for use within GE’s Mark V heavy-duty turbine control systems and related drive architectures. This module serves as a critical communication and signal distribution interface, managing high-speed data exchanges between the main control processor boards and local I/O racks to ensure reliable real-time coordination across the control system.

GE DS215KLDCG1AZZ03A DS200KLDCG1AAA

⚙️ Product Datasheet & Technical Parameters

🏷️ Brand: GE Fanuc / General Electric (GE Vernova)
🔢 Model: DS215KLDCG1AZZ03A / DS200KLDCG1AAA
📂 Series: Mark V Control Series / Local Bus Series
📝 Product Name: Local Bus Driver Board Module
🌍 Manufacturing Country: United States
🟢 Product Status: Active Industrial Spare / Factory Surplus
📐 Dimensions: Standard Mark V printed circuit board form factor
⚖️ Weight: 0.45 kg
🌐 Country of Origin: United States
⚡ Power Consumption: Powered via rack backplane / internal bus supplies

🔧 Parameter Configuration & Modification Method

The DS215KLDCG1AZZ03A module functions primarily as a hardware-level bus driver and signal repeater board that typically requires no direct software configuration or firmware updates on the card itself. Installation involves securely seating the board into its designated rack slot and ensuring all onboard jumpers or configuration pins match the system architecture requirements. System-level communication parameters are managed through the main controller configuration files during setup.
🔄 Manual & Automatic Mode Selection

The board operates entirely automatically as an integral component of the real-time internal bus communication network, continuously routing data packets between control modules without operator intervention. There are no manual operating modes, switches, or software overrides located directly on this board; any diagnostic checks must be executed upstream via the Mark V workstation interface during scheduled maintenance windows.
❓ Frequently Asked Questions (Q&A)

💡 Q1: What is the primary function of the DS215KLDCG1AZZ03A module?
A1: It acts as a local bus driver board, facilitating high-speed data communication and signal distribution between the control processors and I/O boards in a Mark V rack.
💡 Q2: Where can I source a replacement GE Fanuc hardware component?
A2: Certified industrial automation suppliers and specialized turbine control distributors maintain active inventories for legacy Mark V spare parts.
💡 Q3: What safety precautions should be observed before handling this board?
A3: Always ensure that the rack power is turned off and observe proper electrostatic discharge (ESD) handling protocols before inserting or removing the module.

🔍 Recommended Alternative GE Fanuc Models
