Horner / General Electric | HE700GEN200 | Genius Network Communications Module

The Horner HE700GEN200 (frequently associated with GE Fanuc control ecosystems) is a robust Genius Network Communications Module engineered specifically for Horner APG Horner Series 7 (OCS) and compatible industrial control platforms. Designed to bridge local controllers with industrial GE Genius bus networks, this module facilitates high-speed data exchange, peer-to-peer communication, and decentralized I/O monitoring across complex automation environments. Built with rugged industrial-grade circuitry, the HE700GEN200 communication module ensures reliable network determinism, robust fault tolerance, and seamless integration in manufacturing and process control applications.

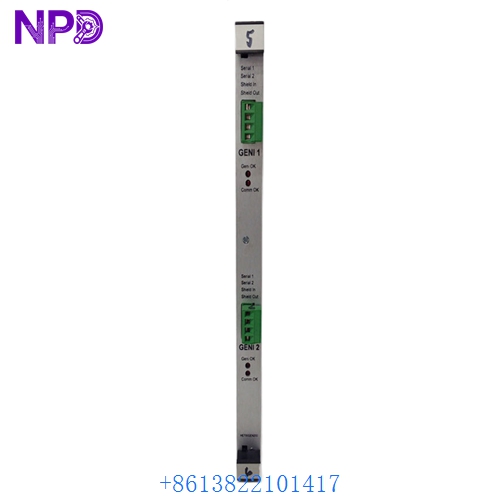

GE HE700GEN200

📋 Technical Specifications & Datasheet

🏷️ Brand: Horner / General Electric (GE Fanuc)
🔖 Model: HE700GEN200
📁 Series: Horner Series 7 (OCS) / Genius Bus Architecture
📌 Product Name: Genius Network Communications Module
📍 Place of Origin: United States / Global Manufacturing
⚡ Product Status: Active / Factory Original
📏 Dimensions: Standard Series 7 plug-in module form factor
⚖️ Weight: 0.38 kg
🌍 Country of Origin: United States
🔌 Discontinuation Status: Supported Legacy / Active Replacement

⚙️ Parameter Configuration and Modification Methods

Configuring and adjusting communication parameters for the HE700GEN200 module is performed utilizing the Cscape programming software suite via a connected PC workstation:

💻 Connection Setup: Connect the configuration PC to the controller serial or USB port using the appropriate programming cable.
📂 Software Access: Launch the Cscape programming environment, open the target hardware configuration project, and select the Horner Series 7 slot containing the network module.
🛠️ Parameter Adjustment: Modify network baud rate settings, Genius bus address assignments, block transfer parameters, and I/O mapping configurations to align with the plant network topology.
📥 Download & Verification: Validate the project configuration, compile the program, and download it to the controller memory. Check communication LED indicators on the module front panel to confirm active network synchronization.

🔄 Manual / Automatic Mode Switching

Operating modes for industrial communication interfaces are managed automatically through the controller’s underlying executive firmware.

⚙️ Automatic Mode: The module operates continuously in runtime mode, automatically handling token passing, polling remote Genius I/O blocks, and refreshing data registers without manual intervention.
🛠️ Manual Mode / Diagnostic State: Technicians can utilize diagnostic tools within the programming software to force communication states or monitor packet error rates during network troubleshooting.
🔒 Switching Procedure: Transitioning between active communication and offline configuration modes requires proper software authorization and system stop states where applicable.

❓ Frequently Asked Questions (Q&A)

Q: What is the primary function of the HE700GEN200 module?
- A: It serves as a Genius network communications interface, allowing Horner Series 7 controllers to communicate over GE Genius bus networks with distributed I/O and peer devices.
Q: What software is required to configure this module?
- A: It is configured using Horner’s Cscape software environment, which integrates both ladder logic programming and hardware module setup.
Q: Does the module support hot-swapping?
- A: Live hot-swapping is generally not recommended for Series 7 plug-in modules unless the system rack power is securely isolated and proper safety protocols are observed.
