๐ง Product Overview

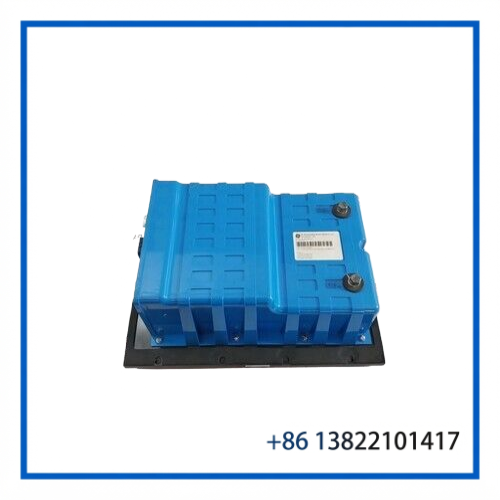

The GENERAL ELECTRIC 446W0696P001 is a DC Pitch Converter identified by the JPC1712151 designation and designed for 20 Nm DC pitch motor applications. It is a power conversion unit used in wind-turbine pitch control systems, where controlled DC power is required to adjust and position the turbine blades.
The unit combines a BAA control circuit board with a CAA power circuit board. The listed continuous output rating is 4.2 kW, with a maximum rating of 12 kW at 80 VDC.
This converter is a specialized wind-power component rather than a general-purpose DC drive. When replacing an installed unit, the complete part number, board revisions, software version, motor rating, and system configuration should be checked.
โ๏ธ Key Features
- GE 446W0696P001 DC Pitch Converter
- JPC1712151 identification
- Designed for 20 Nm pitch motor applications
- 4.2 kW continuous output rating
- Up to 12 kW maximum output rating at 80 VDC
- BAA control circuit board
- CAA power circuit board
- WP1Z/WP5R software configuration
- Designed for controlled DC pitch-motor operation
- Intended for wind-turbine pitch-control applications
- Industrial power-conversion construction
- Used equipment configuration
๐ Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | General Electric |
| Model | 446W0696P001 |
| Product Type | DC Pitch Converter |
| JPC Identification | JPC1712151 |
| Application | Wind Turbine Pitch Control |
| Motor Rating | 20 Nm |
| Continuous Output | 4.2 kW |
| Maximum Output | 12 kW @ 80 VDC |
| Rated Output Voltage | 80 VDC |
| Control Circuit Board | BAA |
| Power Circuit Board | CAA |
| Software Version | WP1Z / WP5R |
| Manufacturer / Business Unit | GE Renewables North America |
| Listed Manufacturer Location | Jabil Guangzhou / China |
| Weight | Approx. 15.22 kg |
| Condition | Used |
โ๏ธ Operating Function
The main purpose of the pitch converter is to provide controlled DC power to the pitch motor. The pitch motor changes the blade angle according to commands from the turbine control system.
During normal operation, the converter regulates motor power according to the required blade position. This allows the turbine controller to make relatively small pitch adjustments during power production and larger corrections when operating conditions change.
Pitch control also plays an important role during turbine protection. When a shutdown or emergency condition occurs, the pitch system can command the blades toward a safer position. The exact emergency-pitch sequence depends on the turbine model and overall control architecture.
The BAA control board and CAA power board form the principal control and power sections of this converter. The installed WP1Z/WP5R software configuration should be preserved when replacing a unit with an identical system configuration.
๐ ๏ธ Installation & Configuration
Before replacing the converter, record the complete information from the existing unit.
Recommended checks include:
- Confirm the 446W0696P001 part number.
- Verify the JPC1712151 identification.
- Check the BAA control-board designation.
- Check the CAA power-board designation.
- Record the installed software version.
- Confirm the pitch motor is the correct 20 Nm configuration.
- Verify the DC bus and output requirements.
- Inspect power terminals and control connectors.
- Check grounding and cable condition.
- Confirm cooling paths are clean.
- Compare the replacement unit with the original before energizing.
A converter with a similar physical appearance should not automatically be considered interchangeable. GE wind-turbine pitch systems can depend on specific hardware revisions, firmware, motor ratings, and control-system parameters.
๐ Maintenance Tips
The converter should be inspected as part of the turbine’s scheduled electrical maintenance program.
Pay particular attention to:
- Power-board connections
- Control-board connectors
- DC terminals
- Cooling surfaces
- Cable insulation
- Signs of overheating
- Loose hardware
- Corrosion or contamination
- Abnormal converter noise
- Pitch motor current during operation
- Fault and alarm records
If a pitch fault occurs, do not immediately replace the converter. Check the motor, mechanical pitch mechanism, DC supply, cabling, feedback devices, and control signals first.
For a stored spare, use ESD protection and keep the converter in a clean, dry environment. Avoid moisture, conductive dust, and unnecessary handling of PCB assemblies.
โ Frequently Asked Questions
Q: What is the GENERAL ELECTRIC 446W0696P001?
A: It is a GE DC Pitch Converter identified as JPC1712151 and intended for a 20 Nm pitch motor application.
Q: What is its continuous power rating?
A: The listed continuous output rating is 4.2 kW.
Q: What is the maximum output rating?
A: The listed maximum is 12 kW at 80 VDC.
Q: What control board does it use?
A: The listed control circuit board is BAA.
Q: What power board does it use?
A: The listed power circuit board is CAA.
Q: What software is installed?
A: The matching unit is listed with WP1Z/WP5R software.
Q: Is this a general-purpose DC drive?
A: No. It is a specialized DC pitch converter associated with wind-turbine pitch-control applications.
Q: Is the listed unit new or used?
A: The exact listing identifies the unit as Used.
Q: What should be checked before purchasing a replacement?
A: Compare the complete part number, JPC identification, BAA/CAA board configuration, software version, output rating, pitch-motor rating, connectors, and turbine-control-system requirements.
๐ 10 Related GE Models / Components
- GE 446W0696P002 โ Related DC Pitch Converter Variant
- GE 446W0696P003 โ Related DC Pitch Converter Variant
- GE 446W0696P004 โ Related DC Pitch Converter Variant
- GE 446W0696P005 โ Related DC Pitch Converter Variant
- GE 446W0696P006 โ Related DC Pitch Converter Variant
- GE 446W0696P007 โ Related DC Pitch Converter Variant
- GE 446W0696P008 โ Related DC Pitch Converter Variant
- GE 446W0696P009 โ Related DC Pitch Converter Variant
- GE 109W6843P001 โ Hub Converter Assembly
- GE JPC1712151 โ Associated Pitch Converter Identification
These are related GE wind-power or pitch-system references, not guaranteed direct replacements for 446W0696P001. The exact turbine and hardware configuration should always be matched before substitution.
๐ญ Application Summary
The GENERAL ELECTRIC 446W0696P001 is a specialized DC power-conversion component for turbine pitch control. Its 4.2 kW continuous rating and 80 VDC output configuration are intended to support the controlled operation of a 20 Nm pitch motor.
For wind-turbine maintenance teams, this type of converter is a critical spare because a failure in the pitch-power chain can affect blade positioning and turbine availability. Keeping a correctly matched spare can reduce troubleshooting and replacement time during maintenance.
For procurement, the safest identification method is to match the complete 446W0696P001 number together with JPC1712151, BAA/CAA board information, WP1Z/WP5R software configuration, and the installed turbine system.
