TERASAKI ELECTRIC XS1600NE | 1600A 3-Pole Circuit Breaker

🔹 Product Overview

The TERASAKI ELECTRIC XS1600NE is a high-current molded case circuit breaker from the Terasaki TemBreak XS series. It is designed for large low-voltage power distribution and protection applications where reliable circuit interruption and adjustable overcurrent protection are required.

The XS1600NE is a 1600A-frame breaker and is listed by Terasaki as part of its XS Series electronic OCR-type circuit breakers. The standard XS1600NE configuration is available in 3-pole and 4-pole versions, with adjustable rated-current ranges depending on the breaker configuration.

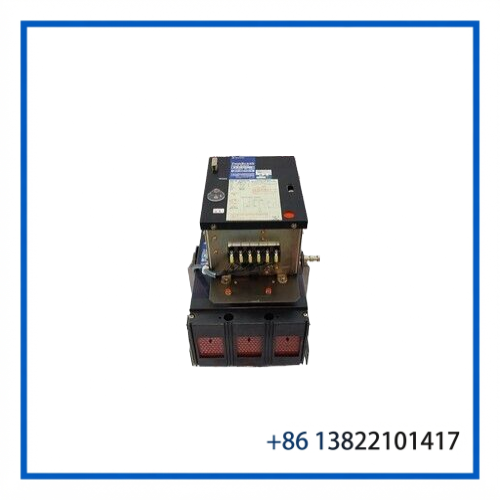

This particular eBay listing identifies the unit as an XS1600NE, 3-pole, 50–60 Hz circuit breaker, with a New – Open Box condition.

📋 Technical Specifications

Parameter	Details
Brand	Terasaki Electric
Model	XS1600NE
Product Series	TemBreak XS
Product Type	Molded Case Circuit Breaker
Protection Type	Electronic OCR
Frame Size	1600 A
Number of Poles	3 Pole
Frequency	50/60 Hz
Rated Insulation Voltage	Up to AC 690 V, depending on configuration
Rated Current	Adjustable; 600 / 700 / 800 / 1000 / 1200 / 1600 A configurations are documented
Auxiliary Switch	2H0757SAA/K
Shunt Trip Reference	2H1023SAC
Motor Operator	XMC9
Motor Operator Voltage	AC 100–115 V
Motor Operator Current	Approx. 1.0 A
Country of Origin	Japan
Series Status	Discontinued
Referenced Listing Condition	New – Open Box

Terasaki’s technical documentation identifies XS1600NE under the standard XS Series electronic OCR range and shows the 1600A frame with adjustable rated-current configurations. Terasaki’s technical download pages also document XS1600NE for AC415V, AC460V and AC690V application categories.

⚙️ Main Features

1600A-frame molded case circuit breaker
3-pole configuration
Electronic overcurrent protection
Adjustable rated-current settings
50/60 Hz AC operation
Suitable for large power distribution systems
Optional motor-operated mechanism
Auxiliary switch capability
Shunt-trip configuration capability
Available with different connection and mounting arrangements
Designed for industrial and marine electrical applications

The XS1600NE can also be fitted with a motor operator. Terasaki documentation lists the XMC9 motor operator as applicable to the XS1600NE, with AC 100–115 V and AC 200–230 V operating-voltage options documented for the XMC series.

🔌 Protection & Electrical Configuration

The XS1600NE belongs to Terasaki’s electronic OCR-type XS series. For the 1600A frame, the documented adjustable current range includes configurations from 600A through 1600A. The exact protection settings depend on the trip-unit configuration installed on the individual breaker.

Some versions may include:

Overcurrent protection
Electronic trip unit
Auxiliary contacts
Shunt trip
Motor operator
Emergency switchboard accessories
Front or rear connection arrangements

The accessories are configuration-dependent, so the actual breaker should be checked before ordering replacement parts or accessories.

🏭 Typical Applications

The XS1600NE is suited to high-current distribution and protection duties such as:

Main distribution switchboards
Industrial electrical panels
Generator switchboards
Marine switchboards
Large motor distribution systems
Factory power distribution
Shipboard electrical systems
Emergency power distribution
High-current feeder protection

Terasaki’s selection documentation specifically notes the XS series for applications rated at 40°C, with a 45°C rating referenced for marine applications.

🔧 Installation & Maintenance Notes

Before replacing an existing breaker, confirm the complete model number and configuration. In particular, check:

XS1600NE model marking
Number of poles
Rated current setting
Trip-unit configuration
Rated voltage
Auxiliary switch arrangement
Shunt-trip voltage
Motor operator voltage
Connection type
Mounting arrangement

For a 1600A breaker, terminal and connection hardware should be checked carefully. Terasaki documentation specifies M12 terminal hardware and a tightening-torque range of approximately 40.2–65.7 N·m for the relevant XS1600NE connection arrangement. Always follow the applicable Terasaki manual for the exact configuration being installed.

Before energizing the circuit, inspect the breaker body, terminals, insulation surfaces and operating mechanism. Verify that the breaker opens, closes and trips correctly according to the maintenance procedure for the installation.

🔍 Identification References

Useful identification information for this product includes:

TERASAKI ELECTRIC
XS1600NE
TemBreak
XS Series
1600A frame
3 Pole
50/60 Hz
XMC9 motor operator
2H0757SAA/K auxiliary switch
2H1023SAC shunt trip

The exact accessories should not be assumed from the base model alone. The physical nameplate and installed accessory modules should be checked when purchasing a replacement.

❓ Frequently Asked Questions

Q: What is the rated frame size of the XS1600NE?

A: The XS1600NE is part of the 1600A frame-size XS Series. Its electronic OCR configuration provides adjustable rated-current settings.

Q: Is the XS1600NE a 3-pole breaker?

A: Yes. The referenced eBay unit is specifically listed as a 3-pole XS1600NE. Terasaki’s technical documentation also indicates that the XS1600NE frame is available in 3- and 4-pole versions.

Q: Can the XS1600NE operate at 50 Hz and 60 Hz?

A: Yes. The referenced unit is specified for 50–60 Hz operation.

Q: Does the XS1600NE support a motor operator?

A: Yes. Terasaki documentation lists the XMC9 motor operator as applicable to the XS1600NE.

Q: Is XS1600NE still a current Terasaki model?

A: Terasaki currently lists XS1600NE on its discontinued-products page. This makes the model particularly relevant when sourcing replacement or maintenance stock for existing installations.

📦 Related Terasaki Models

The following models belong to the same or closely related Terasaki breaker families. They are related models, not automatic substitutes:

TERASAKI XS1000NE — 1000A-class XS Series breaker
TERASAKI XS1200NE — 1200A-class XS Series breaker
TERASAKI XS1600ND — 1600A-class XS Series variant
TERASAKI XS2000NE — 2000A-class XS Series breaker
TERASAKI XS2500NE — 2500A-class XS Series breaker
TERASAKI XS800NE — 800A-class XS Series breaker
TERASAKI XS600NE — 600A-class XS Series breaker
TERASAKI XS400NE — 400A-class XS Series breaker
TERASAKI XH1200NE — related high-fault-level breaker
TERASAKI XH1600NE — verify exact configuration and availability before considering as an alternative

Terasaki’s official technical resources group XS1600NE with XS400NE, XS600NE, XS800NE, XS1000NE, XS1200NE, XS2000NE and XS2500NE within the relevant XS-series documentation.

🛠️ Maintenance Recommendations

Because this is a high-current 1600A breaker, maintenance should include inspection of the main contacts, terminals, insulation, operating mechanism and trip unit.

For long-term spare-parts storage:

Keep the breaker dry and protected from dust.
Avoid mechanical shock during transportation.
Protect exposed terminals from contamination.
Store electronic trip components in suitable conditions.
Inspect the operating mechanism before installation.
Verify the trip-unit settings against the original installation.
Perform insulation and functional checks before energization.

The referenced eBay listing describes this particular unit as New – Open Box, while other XS1600NE listings are offered as used units. Therefore, the actual condition, accessory configuration and nameplate details should be confirmed for the specific unit being purchased.
