Allen-Bradley 6180W-15BP2KHDC | VersaView Industrial Workstation

Product Overview

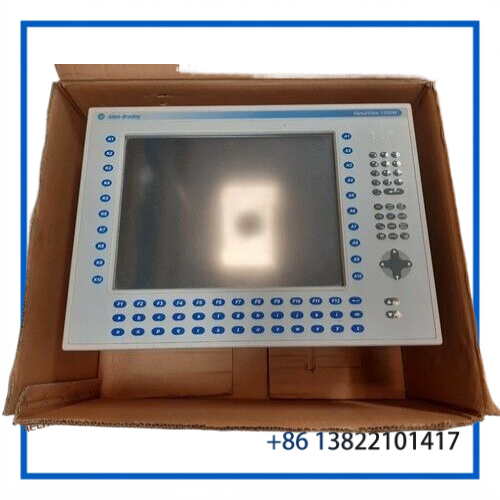

The Allen-Bradley 6180W-15BP2KHDC is a VersaView 1500W Industrial Workstation designed for industrial computing and operator-interface applications.

This model combines a 15-inch TFT color display with an industrial workstation platform and DC power input. It is associated with Allen-Bradley / Rockwell Automation industrial systems and can be used in control rooms, machine control environments, production equipment and industrial HMI applications.

The specific unit identification found in current records is Series A, Revision I. Related listings also show other revisions of the same catalog number, so the Series and Revision should be checked carefully when sourcing a replacement.

Key Features

Allen-Bradley VersaView 1500W Industrial Workstation
15-inch TFT color display
1024 × 768 display resolution
Industrial workstation design
DC power input
18–32VDC / 7.5A / 180W listed for the specific Series A configuration
Windows-based industrial computing platform
Suitable for industrial HMI and workstation applications
Series A / Revision I identification
Approximate listed weight: 20.15 kg

Technical Datasheet

Parameter	Specification
Brand	Allen-Bradley
Catalog No.	6180W-15BP2KHDC
Product Family	VersaView 1500W
Product Type	Industrial Workstation
Display Size	15 in.
Display Type	TFT Color
Resolution	1024 × 768 pixels
Series	A
Revision	I
Input Voltage	18–32VDC
Current	7.5A
Power	180W
Operating System	Windows XP Professional, as listed for this specific unit
Approx. Weight	20.150 kg
Country of Origin	Taiwan, according to current product records

The 15-inch display and 1024 × 768 resolution are identified in product specifications for this catalog number. The 18–32VDC, 7.5A and 180W values are associated with the specific Series A unit records. Another supplier lists 19–32VDC, so the actual nameplate should be checked before applying power.

Application

The VersaView 1500W is intended for industrial environments where an operator workstation needs to combine a display with PC-based computing.

Typical applications include:

Industrial HMI systems
Machine control stations
Production-line monitoring
Factory automation
Process monitoring
SCADA workstation applications
Control-room operator stations
Legacy Windows-based industrial systems

For existing installations, keeping the same catalog number, Series, Revision and software environment can simplify replacement and reduce compatibility issues.

Installation & Configuration

Before installation, verify the catalog number and nameplate information on the existing workstation.

Recommended checks include:

Confirm 6180W-15BP2KHDC on the equipment label.
Verify Series and Revision.
Check the available DC supply against the workstation requirements.
Record existing software and application settings.
Disconnect power before removing the workstation.
Install the replacement unit using the original mounting arrangement.
Reconnect the required industrial communication and peripheral connections.
Restore the approved operating environment and application software.
Verify display operation, keyboard/mouse functions and connected industrial devices.
Confirm communication with the control or SCADA system before returning the workstation to service.

Because different revisions can have different hardware or software configurations, do not assume that every 6180W-15BP2KHDC unit is identical. Current records show both Series A / Rev. I and other revisions under the same catalog number.

Maintenance Recommendations

For a legacy industrial workstation, preventive maintenance should focus on both the computer hardware and the display.

Check periodically:

Display brightness and image stability
Cooling openings and fans
DC power connections
Industrial communication ports
Storage media condition
Keyboard and pointing-device connections
Internal dust accumulation
Mounting hardware
Operating-system and application configuration

For critical systems, maintain a tested spare with a documented software image and configuration backup where permitted by the original system design.

Important Replacement Notes

The catalog number alone may not be enough when replacing an older VersaView workstation. Series, Revision, operating system, installed software and hardware configuration can all affect compatibility.

The specific unit referenced here is listed as Series A / Revision I, while other records for the same catalog number identify different revisions. Confirm the actual unit markings before purchase.

FAQ

Q: What is Allen-Bradley 6180W-15BP2KHDC?
A: It is a VersaView 1500W Industrial Workstation from Allen-Bradley.

Q: What size display does it have?
A: Product records identify a 15-inch TFT color display with 1024 × 768 resolution.

Q: What is the power requirement?
A: The specific Series A listing identifies 18–32VDC, 7.5A and 180W. Another technical listing specifies 19–32VDC, so the unit nameplate should be checked before installation.

Q: What Series and Revision is this unit?
A: The referenced unit is identified as Series A, Revision I.

Q: Is the operating system included?
A: The specific Series A records identify Windows XP Professional. Software licensing and installation should be verified separately for the actual unit being supplied.
