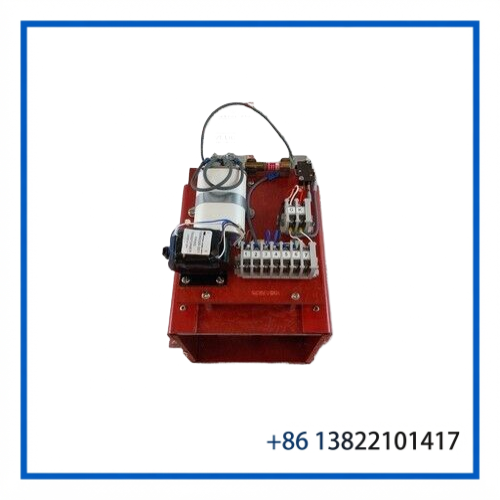

ROSS HILL 0100-0150-01 | SCR Bridge Heat Sink Assembly 10576578-001

Product Overview

The ROSS HILL 0100-0150-01 is an SCR Bridge Heat Sink Assembly associated with a complete SCR enclosure assembly. Public product records identify it with Ross Hill and National Oilwell Varco applications and list it for Model 1200 equipment.

The assembly is identified by multiple related numbers, including 10055625-001, 10576578-001 and 10602590-001. The listed revision is REV. B, with an approximate shipping weight of 8.94 kg.

This type of assembly is intended for applications where SCR power components require a dedicated mechanical heat-sinking and enclosure arrangement. When sourcing a replacement, matching the complete part number and revision is recommended rather than relying only on the generic “resistor” description used by some marketplace listings.

Key Features

ROSS HILL industrial power-control component
SCR Bridge Heat Sink Assembly
Associated with SCR enclosure assembly
Part number: 0100-0150-01
Revision: REV. B
Item number: 10576578-001
Additional identification: 10055625-001
Additional number: 10602590-001
Associated with Model 1200 equipment
Approximate listed weight: 8.940 kg
Suitable for maintenance and replacement applications

Technical Datasheet

Parameter	Specification
Brand	ROSS HILL
Model / Part No.	0100-0150-01
Product Type	SCR Bridge Heat Sink Assembly
Revision	REV. B
Item No.	10576578-001
Additional Marking	10055625-001
Additional Part No.	10602590-001
Assembly Identification	867.100.0101
Equipment Model	Model 1200
Related Description	SCR Bridge Heat Sink Assembly Complete / SCR Enclosure
Approx. Weight	8.940 kg

The identification numbers and weight above are taken from current product records. Detailed electrical ratings such as resistance value, current rating, voltage rating and thermal specifications were not reliably published in the sources reviewed, so they should be confirmed from the original nameplate or equipment documentation before installation.

Application

The 0100-0150-01 assembly is associated with SCR-based power-control equipment and is intended to provide the mechanical heat-sinking arrangement required by the SCR bridge.

Typical applications may include:

Industrial SCR power-control systems
Drilling and oilfield equipment
Heavy-duty electrical control systems
Power conversion equipment
Model 1200 equipment maintenance
Replacement of obsolete or damaged SCR bridge assemblies

For an existing system, the complete part number should be checked against the equipment BOM or service documentation before ordering.

Installation & Replacement

Before replacing the assembly, verify all identification markings on the existing unit.

Recommended procedure:

Confirm part number 0100-0150-01 and Revision B.
Cross-check related numbers such as 10576578-001 and 10055625-001.
De-energize and isolate the associated equipment.
Allow sufficient time for DC-link or power components to discharge.
Inspect mounting hardware, bus connections and surrounding components.
Install the replacement assembly in the original mechanical position.
Verify all electrical connections against the equipment wiring documentation.
Check thermal contact and mounting surfaces before returning the system to service.
Perform the manufacturer’s recommended electrical and functional checks.

Because this is part of an SCR power assembly, electrical isolation and discharge procedures should be completed by qualified personnel.

Maintenance Recommendations

Keep the assembly clean and dry during storage. Avoid exposing the heat sink, SCR mounting surfaces or electrical connection points to moisture, conductive dust or mechanical damage.

During maintenance, inspect:

Heat-sink surfaces
SCR mounting points
Electrical terminals and bus connections
Insulating components
Mounting hardware
Signs of overheating or discoloration
Cracks, deformation or corrosion

If the replacement is being held as a critical spare, record the complete part number, revision and all secondary identification numbers in the inventory system.

Identification Cross-Reference

The following identifiers appear together in public product records:

0100-0150-01
10576578-001
10055625-001
10602590-001
867.100.0101
REV. B
Model 1200

These numbers should be treated as identification references rather than assuming that every number represents a direct substitute.

FAQ

Q: What is ROSS HILL 0100-0150-01?
A: Public records identify it as an SCR Bridge Heat Sink Assembly associated with an SCR enclosure assembly.

Q: What is the main item number?
A: The item number associated with the assembly is 10576578-001.

Q: What revision is this unit?
A: The listed version is REV. B.

Q: What other numbers are associated with this part?
A: 10055625-001 and 10602590-001 are also listed with the 0100-0150-01 assembly.

Q: What equipment is it associated with?
A: Current product records identify it with Model 1200 equipment.

Q: Is it a standalone resistor?
A: Although some marketplace listings categorize it as a “Resistor,” the more detailed product description identifies the item as an SCR Bridge Heat Sink Assembly / SCR enclosure assembly. This distinction is important when matching a replacement.
