🔹 Product Overview

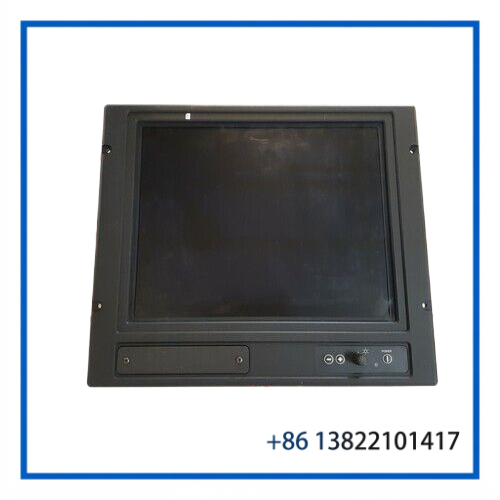

The HATTELAND JH 17T01MMD-A1-1303 is a 17.4-inch industrial and maritime multi-display designed for demanding control, monitoring, and navigation environments. The A1 version supports AC power input and is suitable for systems operating on 115 VAC/60 Hz or 230 VAC/50 Hz power supplies.
This display uses TFT MVA technology and provides a native resolution of 1280 × 1024 pixels. With support for RGB, DVI-D, composite video, and S-Video signals, it can be integrated into a variety of industrial computers, marine control systems, monitoring stations, and legacy automation platforms.
🔧 Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | HATTELAND |
| Model | JH 17T01MMD-A1-1303 |
| Series | JH 17T01 MMD Series |
| Product Name | Maritime Multi Display |
| Display Size | 17.4 Inch |
| Display Technology | TFT MVA |
| Native Resolution | 1280 × 1024 |
| Brightness | 220 cd/m² Typical |
| Contrast Ratio | 400:1 Typical |
| Response Time | 25 ms Typical |
| Viewing Angle | ±80° Typical |
| Active Display Area | 345.6 × 276.48 mm |
| Dimensions | Approx. 460 × 400 × 57 mm |
| Weight | Approx. 9.2 kg with bracket |
| Power Supply | 115 VAC/60 Hz or 230 VAC/50 Hz |
| Maximum Power Consumption | 60 W |
| Input Interfaces | DVI-D, RGB, Composite Video, S-Video |
| Operating Temperature | -15°C to +55°C |
| Storage Temperature | -20°C to +60°C |
| Product Type | Industrial / Maritime Display |
| Country of Origin | Norway |
| Condition | New Surplus / Subject to Actual Stock Condition |
The JH 17T01 MMD platform supports resolutions from VGA through SXGA, with 1280 × 1024 recommended for optimum picture quality. It also supports multiple synchronization formats, including separate synchronization, composite synchronization, and synchronization on green.
⚙️ Key Features
• 17.4-inch industrial-grade display
• Native 1280 × 1024 resolution
• TFT MVA display technology
• Wide viewing angle design
• DVI-D and analog RGB PC signal support
• Composite video and S-Video input support
• AC power input for the A1 version
• Maximum operating power consumption of 60 W
• Designed for marine and industrial monitoring applications
• Front-panel power and brightness controls
• Suitable for legacy control systems requiring VGA-to-SXGA display compatibility
🛠️ Typical Applications
The HATTELAND JH 17T01MMD-A1-1303 can be used in ship bridge systems, marine automation panels, industrial operator stations, process monitoring systems, machinery control cabinets, offshore installations, and industrial computer display applications.
Its multiple signal interfaces make it particularly useful when replacing an older display in an existing system where modern displays may not provide the required combination of RGB, video, and legacy signal connections.
❓ Frequently Asked Questions
🔹 Q: What is the screen size of the JH 17T01MMD-A1-1303?
A: The display has a 17.4-inch viewable screen size.
🔹 Q: What is the native resolution?
A: The native resolution is 1280 × 1024 pixels.
🔹 Q: What power supply does the A1 version use?
A: The A1 version is designed for AC power and supports 115 VAC/60 Hz or 230 VAC/50 Hz operation.
🔹 Q: How much power does the display consume?
A: Maximum operating power consumption is approximately 60 W.
🔹 Q: Does this display support DVI input?
A: Yes. The JH 17T01 MMD specification includes a DVI-D input in addition to RGB, composite video, and S-Video connections.
🔹 Q: Can it be used with an older industrial computer?
A: Yes. Its support for analog RGB and resolutions ranging from VGA to SXGA makes it suitable for many legacy industrial computer and automation systems.
🔹 Q: What should be checked before replacing an existing display?
A: Confirm the exact model number, power supply version, mounting dimensions, input interface, connector configuration, and available installation space before ordering.
🔹 Q: Is the touchscreen included?
A: Touchscreen functionality was available as an optional configuration on this display platform. The actual configuration of the specific unit should be confirmed by the model suffix, product label, and physical inspection.
