๐ Product Overview

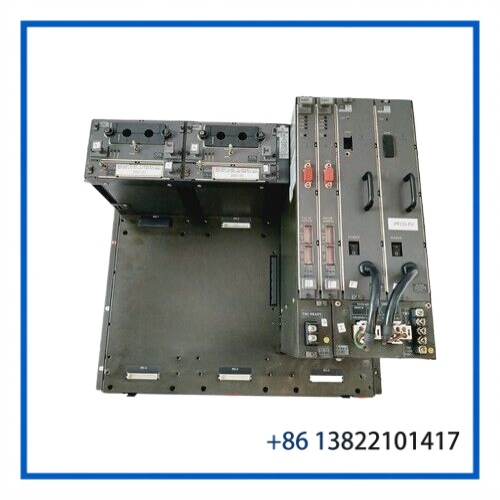

The YOKOGAWA AIP521 is a Field Control Station component used in Yokogawa distributed control system applications. It is designed for industrial process control environments where stable controller operation, system communication, and processor backup capability are important.
The AIP521 configuration can be used together with CPU, power supply, communication, and I/O-related modules to form a complete Field Control Station. CPU backup functionality supports improved system continuity and helps protect critical control data during abnormal operating conditions or temporary power interruptions.
Yokogawa Field Control Station hardware is designed around CPU processing, power supply, communication interfaces, and I/O architecture. Redundant configurations can support higher system availability in demanding industrial applications.
โ๏ธ Product Features
๐น Field Control Station architecture for industrial automation systems
๐น CPU backup configuration for improved operational continuity
๐น Suitable for CENTUM-related distributed control environments
๐น Supports integration with CPU, power supply, communication, and I/O modules
๐น Designed for continuous industrial process monitoring and control
๐น Suitable for applications requiring stable and maintainable control hardware
๐น Compatible with redundant system architectures depending on the complete station configuration
Yokogawa Field Control Station designs can support synchronous hot-standby CPU architectures, where processor redundancy improves control system availability.
๐ Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | YOKOGAWA |
| Model | AIP521 |
| Series | CENTUM Field Control Station System |
| Product Name | Field Control Station with CPU Backup |
| Product Type | Industrial Distributed Control System Component |
| CPU Backup | Supported in the referenced station configuration |
| Associated CPU | CP703 configuration may be used depending on station build |
| Associated Power Supply | PW701 configuration may be used depending on station build |
| Power Supply Input | 100โ120 VAC, 50/60 Hz, depending on installed power supply configuration |
| Internal Power Output | +5.1 VDC, depending on installed PW701 power supply |
| Power Capacity | Up to 147.9 W for the referenced PW701 configuration |
| Communication Architecture | VLnet-based configuration depending on complete system setup |
| Station Configuration | Modular Field Control Station |
| Installation | Industrial control cabinet or system rack installation |
| Country of Manufacture | Singapore may apply to specific production units; verify the unit label before purchase |
| Condition | Available condition depends on the individual supplied unit |
| Dimensions | Vary according to the complete Field Control Station configuration |
| Weight | Varies according to installed modules and complete station configuration |
The exact dimensions, weight, manufacturing origin, and installed module combination should always be confirmed from the physical nameplate and supplied configuration because AIP521 systems may be offered as part of different Field Control Station assemblies. A referenced PW701 configuration is rated for 100โ120 VAC input and +5.1 VDC output at up to 29 A.
๐ญ Typical Applications
๐ญ Oil and gas processing systems
โก Power generation and utility automation
๐งช Chemical and petrochemical plants
๐๏ธ Manufacturing process control
๐ง Water and wastewater treatment
๐ฅ Continuous production facilities
The Field Control Station acts as part of the control infrastructure connecting processor functions with field I/O and communication systems.
โ Frequently Asked Questions
Q1: What is the main function of the AIP521?
A: The AIP521 is associated with a Yokogawa Field Control Station configuration and supports industrial control system operation with CPU backup capability.
Q2: Is the AIP521 a complete standalone controller?
A: The AIP521 should be evaluated as part of its complete Field Control Station configuration. The final system may include CPU modules, power supplies, communication interfaces, nests, and I/O modules.
Q3: Does the unit support redundant CPU operation?
A: Yokogawa Field Control Station architectures can support redundant CPU configurations. The actual redundancy capability depends on the installed hardware and system configuration.
Q4: Which CPU may be associated with this system?
A: CP703 is one CPU model found in referenced AIP521 Field Control Station configurations. Compatibility should be verified against the complete station model and system documentation.
Q5: Which power supply may be used with the station?
A: PW701 is one power supply model found in referenced configurations, with specifications including 100โ120 VAC input and +5.1 VDC output.
Q6: Can this product be used as a direct replacement?
A: Replacement compatibility should be confirmed using the complete part number, suffix code, station configuration, CPU type, power supply type, communication modules, and system software requirements.
Q7: What should be checked before installation?
A: Verify the model number, suffix codes, installed modules, connector condition, power requirements, communication configuration, and compatibility with the existing Yokogawa control system.
๐ง Recommended YOKOGAWA Models
๐น YOKOGAWA CP703 โ CPU Module
๐น YOKOGAWA PW701 โ Power Supply Module
๐น YOKOGAWA AMC80 โ Communication-Related Module
๐น YOKOGAWA AMN32 โ Communication Module
๐น YOKOGAWA AMN34 โ Communication Interface Module
๐น YOKOGAWA ADC32 โ Industrial I/O Module
๐น YOKOGAWA AMM25C โ I/O Module
๐น YOKOGAWA AMM12C โ I/O Module
๐น YOKOGAWA ADM12C โ Digital I/O Module
๐น YOKOGAWA ADM52C โ Industrial I/O Module
These models are commonly found in related Field Control Station assemblies, but exact compatibility depends on the specific CENTUM system generation, station configuration, suffix code, and installed hardware.
