🔹 Product Overview

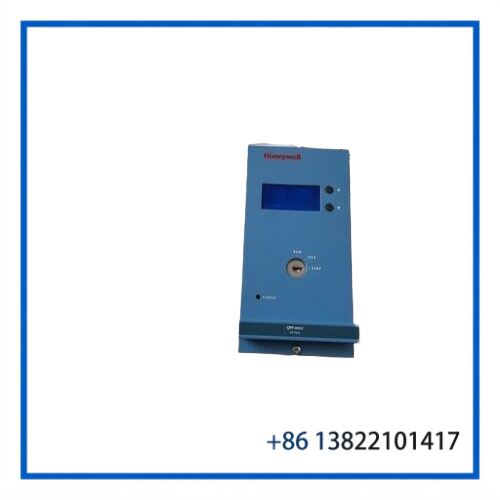

The HONEYWELL QPP-0002 is an Enhanced Performance Quad Processor Pack designed for the Honeywell Safety Manager system. It serves as the central processing module of the Safety Manager Controller and is responsible for executing safety logic, processing field I/O information, monitoring system status, and supporting safety-related control functions.
The module uses a dual-processor architecture with independent memory resources and hardware comparison functions. Continuous diagnostics help detect processor and memory inconsistencies. The QPP-0002 is designed for Safety Manager applications requiring high diagnostic coverage and can be used in configurations supporting SIL3 safety applications.
🔧 Key Features
• Enhanced performance Safety Manager processor module
• Dual processors operating synchronously
• Hardware comparison of processor and memory operations
• Integrated watchdog monitoring
• 5 VDC processor supply monitoring
• 24 VDC auxiliary supply monitoring
• Emergency Shutdown input support
• Dedicated communication support for redundant controller configurations
• Continuous internal diagnostics
• Compatible with Safety Manager controller chassis
📊 Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | HONEYWELL |
| Model | QPP-0002 |
| Series | Safety Manager |
| Product Name | Enhanced Performance Quad Processor Pack |
| Product Type | Safety System Processor Module |
| Processor Architecture | Dual Processor |
| Application | Safety Manager Controller |
| Primary Supply Voltage | 5 VDC ±5% |
| Maximum 5 VDC Supply Current | 1.2 A |
| Auxiliary Supply Voltage | 24 VDC |
| Maximum 24 VDC Supply Current | 25 mA |
| Emergency Shutdown Input | 24 VDC SD Input |
| Watchdog Output | Up to 750 mA per output |
| Operating Temperature | -5°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 10–95%, non-condensing |
| Dimensions | Approx. 176 × 88.5 × 212 mm |
| Weight | Approx. 1.3 kg |
| Diagnostic Coverage | Greater than 99% |
| Safety Capability | Suitable for applications up to SIL3 |
| Redundant Controller Support | Yes |
| Origin | United States* |
| Condition | New Surplus / Subject to Actual Stock Condition |
*Origin and product condition should be confirmed according to the physical nameplate, serial number, and actual supplied unit.
⚙️ Operating Function
The QPP-0002 acts as the processing core of a Safety Manager Controller. It reads input information from the Safety Manager I/O architecture, executes the configured Controller File, and sends the calculated results to the appropriate output interfaces.
The processor module includes two processors and separate memory resources operating synchronously. Hardware comparators continuously check processor and memory activity. If an inconsistency or internal fault is detected, the monitoring and watchdog functions can initiate the required safety response.
In redundant controller configurations, two processor modules can operate together through a dedicated redundant communication connection. This configuration supports higher system availability while maintaining safety diagnostics.
🛠️ Installation and Handling Notes
Before installation, confirm that the model number and Safety Manager hardware configuration match the system requirements.
Check the module connector area and chassis slot for contamination, damage, or bent contacts before installation.
For removal or replacement, follow the Safety Manager maintenance procedure. Honeywell documentation specifies that the QPP-0002 should only be safely removed or replaced when the controller key switch is in the STOP position.
Always verify the 5 VDC and 24 VDC supply conditions before commissioning. Incorrect supply voltage or unstable power conditions may affect system diagnostics and processor operation.
❓ FAQ
Q1: What is the main function of the HONEYWELL QPP-0002?
A: It is the central processor module used in the Honeywell Safety Manager Controller. It executes safety application logic, processes system information, and supervises important internal diagnostics.
Q2: Is QPP-0002 compatible with redundant Safety Manager systems?
A: Yes. Redundant controller configurations can use two QPP-0002 processor modules operating together through a dedicated communication link.
Q3: What power supplies are required?
A: The processor uses a 5 VDC supply with a maximum current of approximately 1.2 A and also supports a 24 VDC auxiliary supply with a maximum current of approximately 25 mA.
Q4: What is the operating temperature range?
A: The specified external module operating temperature is approximately -5°C to +70°C, depending on the installation environment and applicable system documentation.
Q5: Can the QPP-0002 replace the older QPP-0001?
A: The QPP-0002 is documented as backward compatible and can serve as a one-to-one spare replacement for QPP-0001 in Safety Manager systems using the required firmware version.
Q6: Does the QPP-0002 provide diagnostic functions?
A: Yes. The module monitors processor operation, memory integrity, supply conditions, watchdog functions, and other internal system parameters.
Q7: Is this module suitable for SIL3 applications?
A: The Safety Manager architecture and QPP-0002 diagnostic design support applications up to SIL3 when used within an appropriately designed and configured Safety Manager system.
🔄 Recommended HONEYWELL Safety Manager Models
- HONEYWELL QPP-0001 | Quad Processor Pack
- HONEYWELL FC-QPP-0002 | Enhanced Quad Processor Pack
- HONEYWELL BKM-0001 | Battery and Key-switch Module
- HONEYWELL USI-0001 | Universal Interface Module
- HONEYWELL PSU-240516 | 24 VDC to 5 VDC DC/DC Converter
- HONEYWELL CPCHAS-0001 | Safety Manager Controller Chassis
- HONEYWELL CPCHAS-0002 | Safety Manager Controller Chassis
- HONEYWELL CPCHAS-0003 | Safety Manager Controller Chassis
- HONEYWELL FC-PSU-UNI2450 | Safety Manager System Power Supply
- HONEYWELL FC-PSU-UNI4825 | Safety Manager System Power Supply
📦 The QPP-0002 is a key replacement and maintenance component for Honeywell Safety Manager installations. For spare-part purchasing, it is recommended to confirm the exact model number, firmware compatibility, controller configuration, serial information, and physical condition before installation.
