PRO-FACE 3620003-05 | Operator Interface Monitor 3582302-01

Product Overview

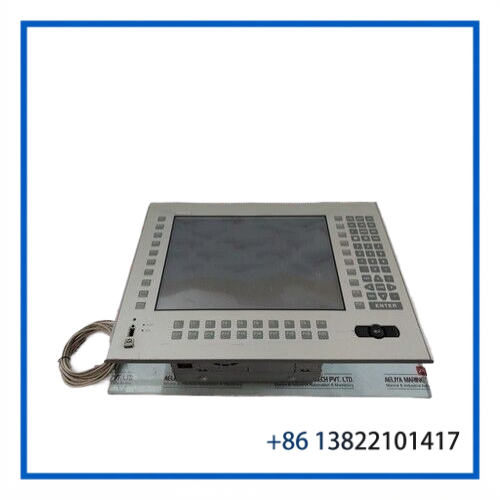

The PRO-FACE 3620003-05 is a front display and operator interface unit used with the Pro-face PL3000 series industrial computer platform. It is identified as a 15-inch LCD front display with keypad, while 3582302-01 is the associated built-in computer unit. Pro-face documentation lists the combination of 3582302-01 with front module 3620003-05 for the APL3700-KA configuration.

The unit is designed for industrial operator-interface applications where the display and computing section are integrated into a panel-mounted system. The related 3582302-01 computer accepts AC100–240V, 50/60Hz input according to the available product identification data.

Key Features

Pro-face PL3000 series operator interface
15-inch LCD front display with keypad
Front module: 3620003-05
Built-in computer: 3582302-01
Related system configuration: APL3700-KA
AC100–240V, 50/60Hz computer input
Industrial panel-mounted design
Made in Japan
Suitable for legacy Pro-face industrial computer systems

The manufacturer’s UL certification documentation identifies 3620003-05 as a 15-inch LCD front display + keypad unit and 3582302-01 as an open-type built-in computer.

Technical Datasheet

Parameter	Specification
Brand	PRO-FACE
Front Module	3620003-05
Computer Module	3582302-01
Product Family	PL3000 Series
Related Configuration	APL3700-KA
Display Type	15-inch LCD
Front Interface	LCD Display + Keypad
Computer Input	AC100–240V, 50/60Hz
Computer Input Current	1.45–0.6A
Computer Rating	12VDC 2.5A / 5VDC 1A / 3.3VDC 1A
Max. Surrounding Air Temperature	50°C
Country of Manufacture	Japan
Approx. Listed Weight	13.35 kg
Certification References	UL / c-UL documentation available

The AC input and DC rating above are associated with the 3582302-01 built-in computer unit; the 3620003-05 is the front display/keypad component rather than a standalone AC-powered monitor.

Application

This Pro-face assembly can be used in industrial control cabinets and legacy machine-control systems where an integrated operator interface and industrial PC are required.

Typical applications include:

Factory automation
Production machinery
Machine monitoring
Process visualization
Industrial equipment control
Legacy HMI/industrial PC replacement
Panel-mounted operator stations

For replacement work, both the front-module part number and the computer-module part number should be checked because Pro-face used different front display modules with the same 3582302-01 computer platform.

Installation & Configuration

Before installation, verify the complete assembly against the existing Pro-face system configuration. In particular, check:

Front module number and revision.
Built-in computer model.
Display/keypad arrangement.
Input voltage and frequency.
Existing enclosure and mounting arrangement.
Software and operating-system requirements.

The 3582302-01 is documented as an open-type built-in computer, so final installation must take the requirements of the end-use enclosure and system into account.

Do not assume that a 3620003-05 front module can be connected to every Pro-face computer variant simply because the connector or mechanical appearance is similar. Match the complete model configuration before replacement.
