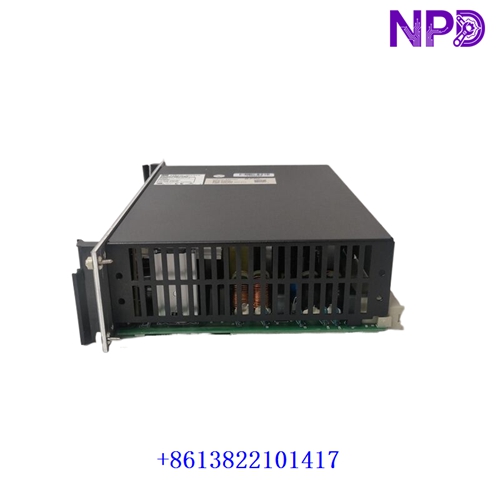

Vibro-Meter (Meggitt) | 200-582-915-032 | VM600 RPS6U Power Supply Module

The Vibro-Meter 200-582-915-032 (widely known as the RPS6U) is a high-performance, rack-mounted power supply module engineered specifically for the VM600 series machinery protection and condition monitoring system. Designed to deliver stable and regulated DC power to all rack cards, processor modules, and associated sensor loops, this unit ensures uninterrupted operational reliability in critical turbomachinery installations. Built with robust industrial redundancy features and advanced transient protection, the RPS6U Power Supply Module prevents power fluctuations from disrupting vital safety protection routines in power generation and petrochemical facilities.

📋 Technical Specifications & Datasheet

🏷️ Brand: Vibro-Meter (Meggitt)
🔖 Model: 200-582-915-032
📁 Manufacturer Designation: RPS6U Power Supply Module
📌 Product Name: VM600 Rack Power Supply Unit
📍 Place of Origin: Switzerland / United Kingdom
⚡ Product Status: Active / Factory Original
📏 Dimensions: Standard VM600 rack slot form factor
⚖️ Weight: 1.2 kg
🌍 Country of Origin: Switzerland
🔌 Discontinuation Status: Supported Legacy / Active Replacement Platform

⚙️ Parameter Configuration and Modification Methods

As a dedicated rack power supply and distribution unit, the 200-582-915-032 module does not utilize software programming or firmware configuration registers. However, physical installation and setup require adherence to precise electrical guidelines:

💻 Input Power Connection: Connect the primary AC or DC supply lines to the dedicated rear-panel terminals of the VM600 rack enclosure, ensuring proper grounding and wire gauge sizing.
📂 Jumper & Switch Setup: Verify internal voltage selection jumpers and redundancy configuration settings match the site power infrastructure before energizing.
🛠️ Rack Installation: Carefully slide the RPS6U module into the designated power supply slot (slots 1 and/or 2) at the front of the VM600 rack and secure the retention latches.
📥 Output Verification: Energize the input power source and check the front-panel LED indicators to verify normal DC output rail voltage and active operational status.

🔄 Manual / Automatic Mode Switching

Operational power distribution and redundancy management are handled completely automatically by the internal circuitry of the power supply unit.

⚙️ Automatic Mode: The module operates continuously in runtime mode, converting input voltage and distributing regulated DC rails to the backplane automatically.
🛠️ Manual Mode / Maintenance Test: Technicians can manually test input voltage levels and check module health using a digital multimeter during scheduled maintenance windows.
🔒 Switching Procedure: Dual redundant power supply configurations switch loads automatically without operator intervention upon primary failure; no manual mode switching is required.

❓ Frequently Asked Questions (Q&A)

Q: What is the primary function of the Vibro-Meter 200-582-915-032 module?
- A: It serves as the primary rack power supply module (RPS6U) for VM600 monitoring systems, providing clean and regulated power to all installed cards.
Q: Does the VM600 rack support redundant power supplies?
- A: Yes, the system rack can accommodate dual RPS6U power supply modules operating in a load-sharing or hot-standby redundant configuration.
Q: Can the power supply module be replaced while the monitoring system is live?
- A: In dual-redundant setups, individual power modules can typically be hot-swapped while the rack remains powered by the secondary unit, provided safety protocols are followed.
