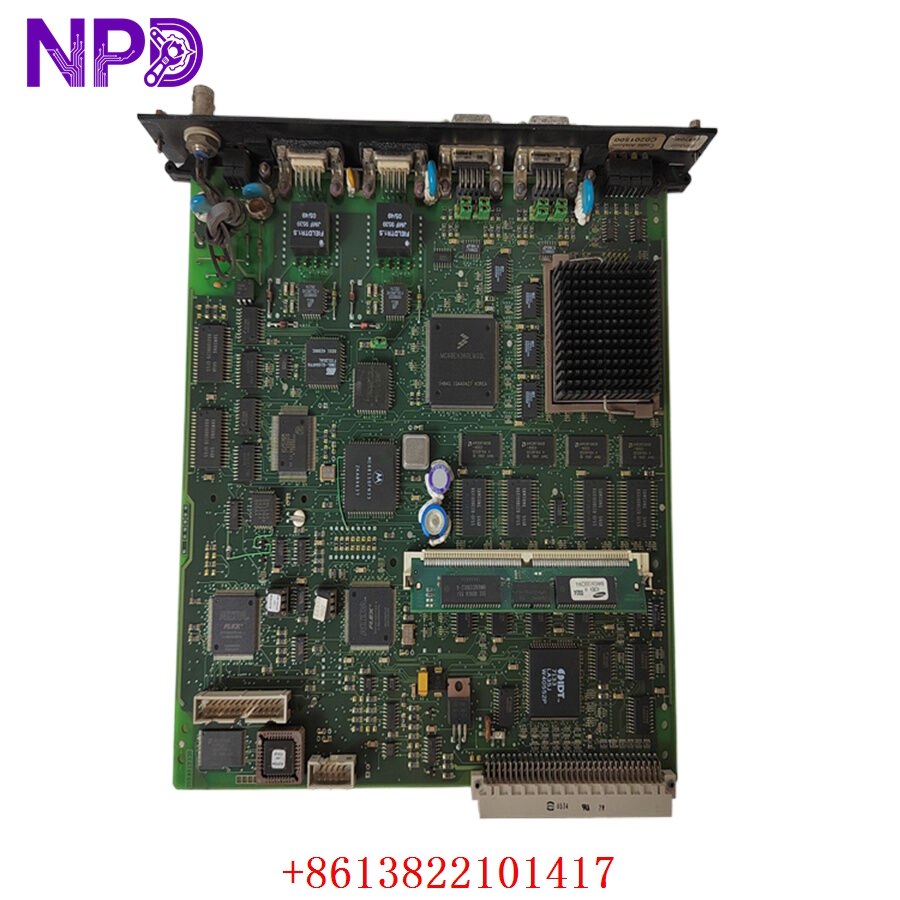

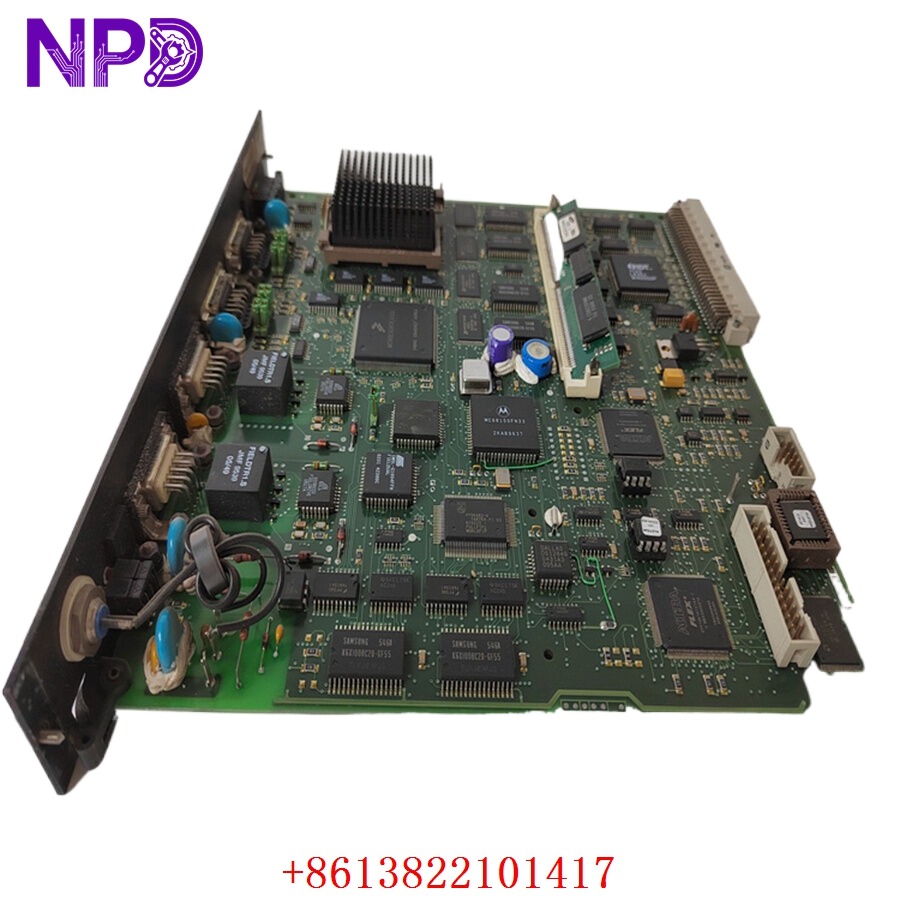

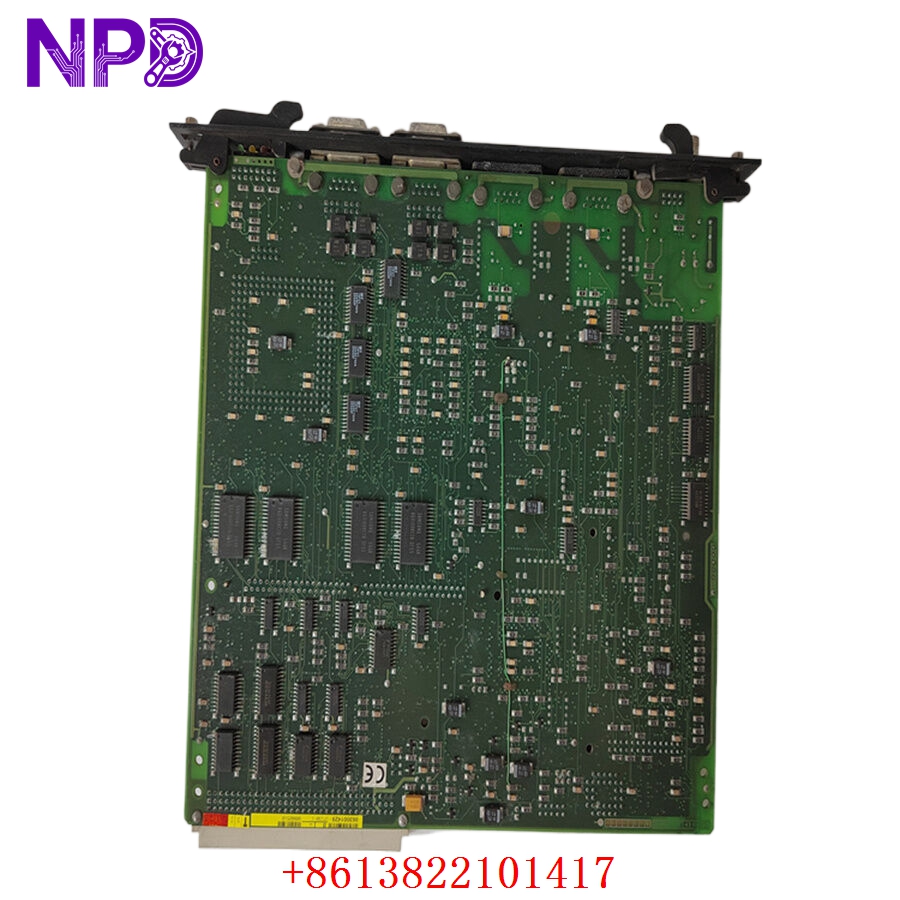

ALSTOM UT150-1 Interface Board Logic Control Module

Description

• Model: ALSTOM UT150-1 (Associated with Alstom / Areva / Schneider Electric grid automation and turbine control systems)
• Brand: ALSTOM (France / Power Grid & Automation Division)
• Series: Alstom Automation & Control Subsystem Arrays
• Core Function: Hardwired interface and signal routing logic board connecting main processors with field instrumentation and switchgear rack assemblies
• Product Type: Substation Logic Interface Board / Processing Card
• Key Specs: Multi-Bus Backplane Topology | High-Density Interface Routing | Advanced Transient Surge Protection Arrays

• Operating Voltage: 24 V DC internal logic rail matching standard rack backplane distributions
• Bus Architecture: Multi-bus parallel edge-connector configuration for real-time, zero-latency processing link integration
• Hardware Suffix Configuration: Revision -1 layout optimized for high-density, multi-point digital signal handshaking
• Surge Withstand Capability: Integrated high-capacity transient voltage suppression (TVS) diodes and passive RC damping networks on peripheral tracks
• Physical Connections: Dual multi-pin high-density rear backplane connector plugs along with front-panel test-point sockets
• Isolation Boundary: Minimum 1.5 kV DC isolation barrier safeguarding main rack processing brains from peripheral electrical faults
• Diagnostic Subsystem: Onboard status tracking components verifying power rail health and interface state bus synchronization
• Environmental Protection: Factory-applied G3 conformal coating to defend against particulate contamination and corrosive moisture inside plant control cabinets

Application Scenarios & Engineering Pitfalls

The On-Site Reality

In large-scale infrastructure environments—like a high-voltage substation switchyard, a utility thermal power plant, or a heavy-duty marine propulsion grid—the data routing networks cannot drop a single bit of information. The ALSTOM UT150-1 serves as the vital logic pipeline that bridges central compute modules with external I/O blocks, protection relays, or turbine governor assemblies. When an interface board like this degrades due to thermal stress or long-term component aging, the entire processor frame lose track of its field sensors, dropping your automation panel into an instant “Rack Communication Failure” state. Since the UT150-1 is no longer supported by current factory runs, finding an immediate, pre-tested replacement is the only way to avoid extended plant outages.

Typical Deployment Scenarios

1. Substation Control Systems – High-Voltage Bay Interface Racks

   Routes real-time status bits and synchronization interlocking commands across parallel processing modules to ensure safe breaker operation.

2. Power Generation – Steam/Gas Turbine Control Panel Interfaces

   Acts as the data backbone linking primary governor control outputs with localized servo-valve amplifier racks.

3. Heavy Heavy Industry – Coordinated Process Line Drive Racks

   Interfaces centralized automation processing commands out to independent multi-axis motor sections in high-EMI settings.

4. Grid Automation – Protection Relay Coordination Frameworks

   Manages parallel bus routing between independent logic blocks to enforce strict microsecond-level trip timing constraints.

Plant Survival Case Study: Critical Turbine Controller Failure Resolved

• Background: A large chemical facility operating its own on-site combined heat and power (CHP) plant relied on a legacy Alstom control system to manage steam turbine operations. The core data bus expansion within the governor cabinet was routed through an ALSTOM UT150-1 logic interface board.
• The Problem: During a routine electrical system test, an auxiliary DC power supply unit inside the panel shorted out, sending a high-frequency voltage transient down the local backplane lines. The surge damaged the data-bus buffer chips on the active UT150-1 board, causing the main turbine controller to instantly lose communication with its field interface cards. The turbine governor tripped on a hard “System Bus Failure,” shutting down power to the facility. The plant was forced to buy costly grid utility power, losing tens of thousands of dollars per shift. The OEM branch stated the hardware series was entirely obsolete with no stock in local distribution depots.
• The Solution: The plant’s technical leader bypassed standard procurement backlogs by contacting our support team directly. We pulled an original, unused surplus UT150-1 unit from our clean inventory core, ran it through our comprehensive multi-channel signal injection validation and parallel bus tracking test, and shipped it out via priority air freight within 4 hours.
• The Result: The replacement hardware arrived at the plant gate early the next morning. The field crew completed the slide-in replacement, verified backplane tracking integrity, and rebooted the cabinet frame. The system established a clean data handshake instantly, allowing the mill to ramp production back to 100% capacity and avoiding a catastrophic multi-week delay.

Compatible Replacement Models

When keeping legacy control platforms functional, verifying exact revision codes and connector layouts prevents physical slot assembly errors.

Quality Assurance & Testing Standard Operating Procedure

To eliminate performance concerns regarding legacy grid-automation modules or warehouse-aged components, every ALSTOM card undergoes a comprehensive verification process before shipment clearance.

[Inbound Traceability Log] ➔ [Optical Microscopic Audit] ➔ [Galvanic Isolation Safety Test] ➔ [Parallel Data Bus Loop Simulation] ➔ [ESD Secure Packing]

1. Inbound Traceability and Structural Screening

• Authenticity Profiling: Verifying the physical manufacturer nameplate, internal board traces, and manufacturing revision codes against Alstom’s grid automation production history.
• Chassis Assessment: Detailed optical tracking of the multi-pin rear edge connector, component solder joints, and mounting rails to ensure zero defects.

2. Optical Microscopic Solder Joint Audit

• Joint Analysis: High-magnification optical inspection of surface solder joints, searching for cold joints, micro-fractures, or oxidation built up over extended storage.
• Component Integrity: Detailed inspection of the onboard logic arrays, line buffers, and filter networks to confirm they are completely free of thermal stress or discoloration.

3. Galvanic Isolation Circuit Verification

• Insulation Resistance Execution: Using a specialized digital insulation tester to apply 500 V DC across the field terminal input paths down to the internal backplane logic ground plane.
• Acceptance Threshold: The insulation barrier must measure above 10 MΩ to ensure absolute protection against field surges bridging into the primary processing rack components.

4. Parallel Data Bus Loop Simulation

• The Testing Environment: The ALSTOM UT150-1 is mounted into a specialized testing array configured specifically to mimic active protection and control rack setups.
• Dynamic Signal Output Tracking: We establish active data communication across all parallel bus pathways, forcing high-density data frames through the edge connectors at full rated operating frequencies.
• Error Rate Verification: Monitoring the signal tracks using digital test diagnostics to confirm zero frame dropouts, timing skew, or cross-channel trace noise.

5. Final Quality Sign-Off and Secure ESD Packaging

• Tagging Protocol: The testing technician signs and applies a dated, serialized “QC Passed” label directly onto the anti-static enclosure layer.
• ESD Shielding: The card is sealed inside a heavy-duty, moisture-barrier anti-static bag packed with fresh desiccant.
• Shock Protection: Housed inside custom shock-absorbing foam layers within a heavy shipping box to eliminate any transportation risks.

Control Rack Interface Card Field Troubleshooting Quick Reference

❗ SAFETY FIRST: Turn off and lock out the primary power feed lines going to the control chassis rack before sliding out any interface cards or checking cable terminations. Intermittently pulling active data boards from a live backplane can generate arc transients that risk damaging adjacent processing cards.

Q: The central processing unit flags a permanent “System Bus Failure” or “Slot Timeout” fault specifically pointing to the slot where the UT150-1 card is housed.

A: Correlation: High. This behavior usually indicates damaged edge connector pins on the rear of the board, or a breakdown within the card’s internal data buffer circuits.

1. Safely isolate the rack power supply lines and remove the card from its slot space.
2. Inspect the multi-pin gold-plated rear edge connector under a bright light. Look for any bent, worn, missing, or corroded contact pads.
3. Clean the edge connector contacts using a high-purity, residue-free electrical contact cleaner. If the backplane pins are clean but the fault won’t clear upon reinsertion, the board’s internal logic has failed. Swap it for a verified spare.

Q: The system experiences random, intermittent communication dropouts during times when high-power equipment (like a large cooling fan or pump motor) starts up nearby.

A: Correlation: High. This problem indicates that the transient noise filtering arrays or grounding paths on the UT150-1 card have degraded over time. When heavy electrical noise is generated nearby, it slips past the weakened filters and corrupts your low-voltage data tracks.

1. Check that the board’s chassis retaining screws are turned down completely against the grounded metal guide rail tracks.
2. Check for any signs of heat discoloration on the small surface-mount filter blocks next to the connector sockets. If the grounding contacts are clean but the faults continue during heavy equipment operations, swap out the board for a verified spare.

Q: The main power rail diagnostic LEDs on the card face remain completely dark when the main rack power is switched on, but adjacent cards boot up fine.

A: Correlation: High. The internal input protection components or voltage monitoring paths on the UT150-1 board have blown due to a localized electrical short circuit.

1. Use a digital multimeter to measure the incoming voltage right at the power input terminals or backplane ribbon lines feeding the card.
2. If correct operating voltage is present right at the input terminals but the board’s internal status LED stays dark, the input channel processing circuit is dead. Replace the entire interface board to restore dependable protection capabilities.

❗ Critical Field Installation Checklist for Plant Technicians

• Align Backplane Pins Carefully: When inserting the board into its slot space, ensure it tracks smoothly along both the top and bottom guide rails. Pushing the card in forcefully when it is misaligned can easily bend or break the high-density backplane pins on the rear connector block.
• Document Firmware Compatibility: Before sliding a replacement board into an active system rack, check your existing control system documentation to ensure that the hardware revision level matches your active firmware parameters. Version mismatches can sometimes cause unexpected boot cycles or initialization rejections.
• Ground Panel Frames Properly: Ensure your control panel enclosure is connected to a high-quality plant instrumentation ground grid. Proper grounding provides the low-impedance path that the UT150-1 needs to safely bleed off high-frequency noise and surge energy.
