Description
The GE IS220PDIIH1B is a high-performance Digital Input (DI) I/O pack designed for the Mark VIe Distributed Control System (DCS). As part of GE’s advanced turbine and industrial control ecosystem, this module serves as a robust interface between critical field sensors and the controller. The IS220PDIIH1B is engineered to monitor the status of various dry contact or voltage-level inputs with high precision, converting field signals into deterministic data for the main processor, which is essential for sequencing, protection, and alarm management in high-availability environments.
Technical Specifications and Datasheet
- Manufacturer: General Electric (GE) / Emerson
- Model Designation: IS220PDIIH1B
- Product Type: Distributed Digital Input (DI) I/O Pack
- Dimensions: 13.5 cm x 10.2 cm x 4.5 cm (5.31 in x 4.02 in x 1.77 in)
- Weight: 0.42 kg (0.93 lbs)
- Country of Origin: USA / Ireland
- Input Type: 24/48/125 VDC (Configurable via software/terminal base)
- Input Points: 24 isolated digital input channels
- Isolation: Optically isolated inputs to protect the control network from field transients
- Communication: High-speed Ethernet I/O Network (IONet) connectivity
- Operating Temperature: -30°C to +65°C (-22°F to +149°F)
- Diagnostic Features: Per-channel status monitoring and integrated health-check diagnostics

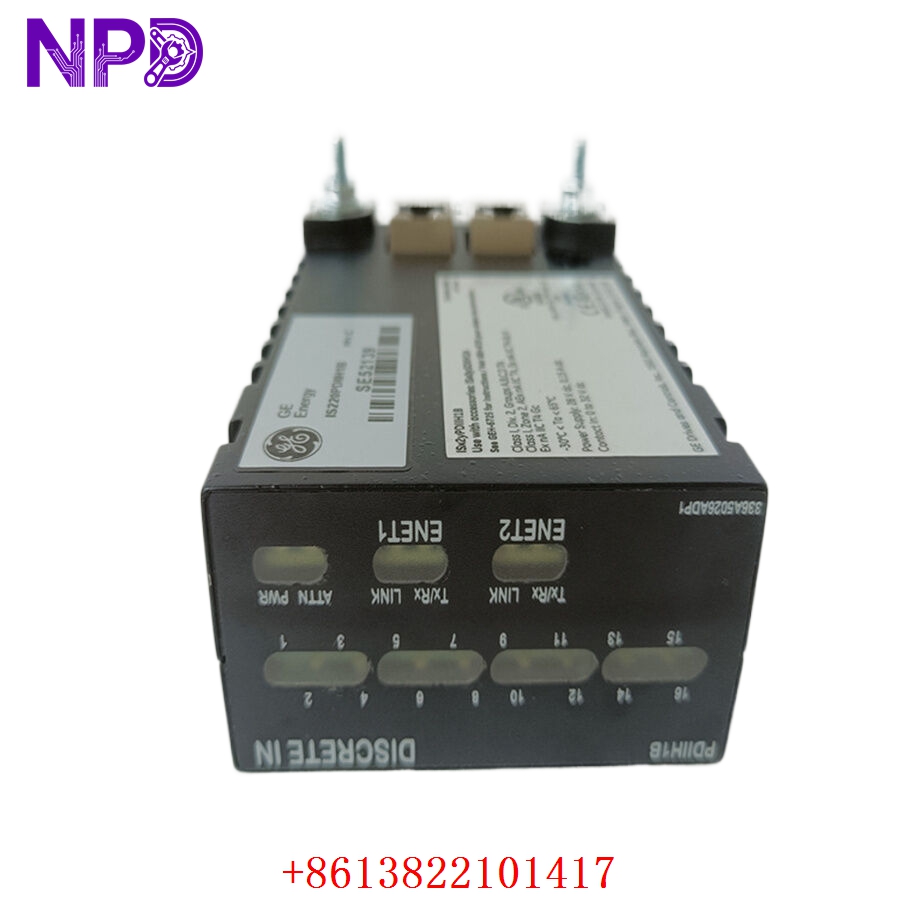

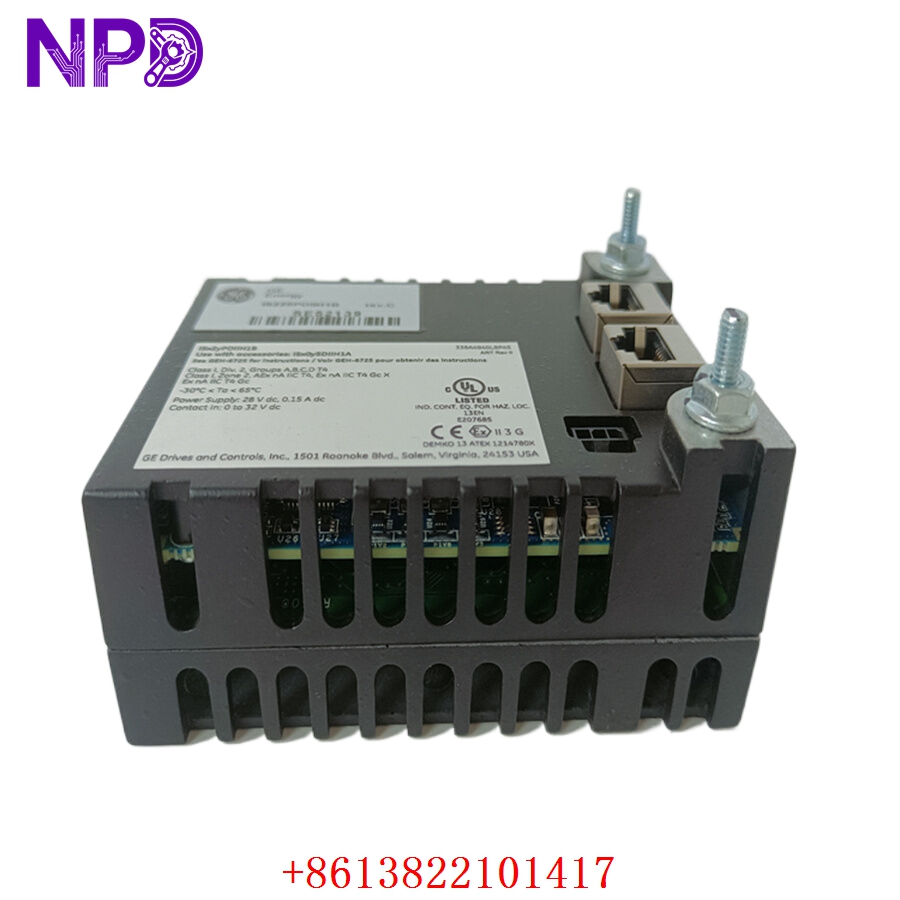

GE IS220PDIIH1B

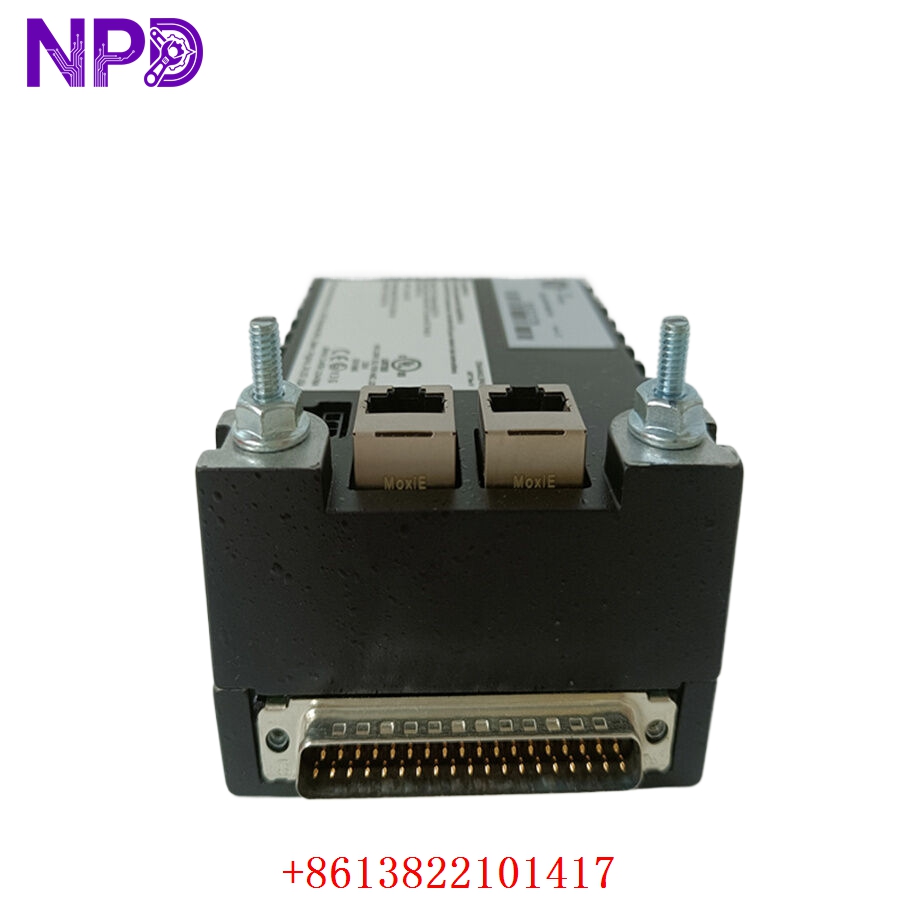

GE IS220PDIIH1B

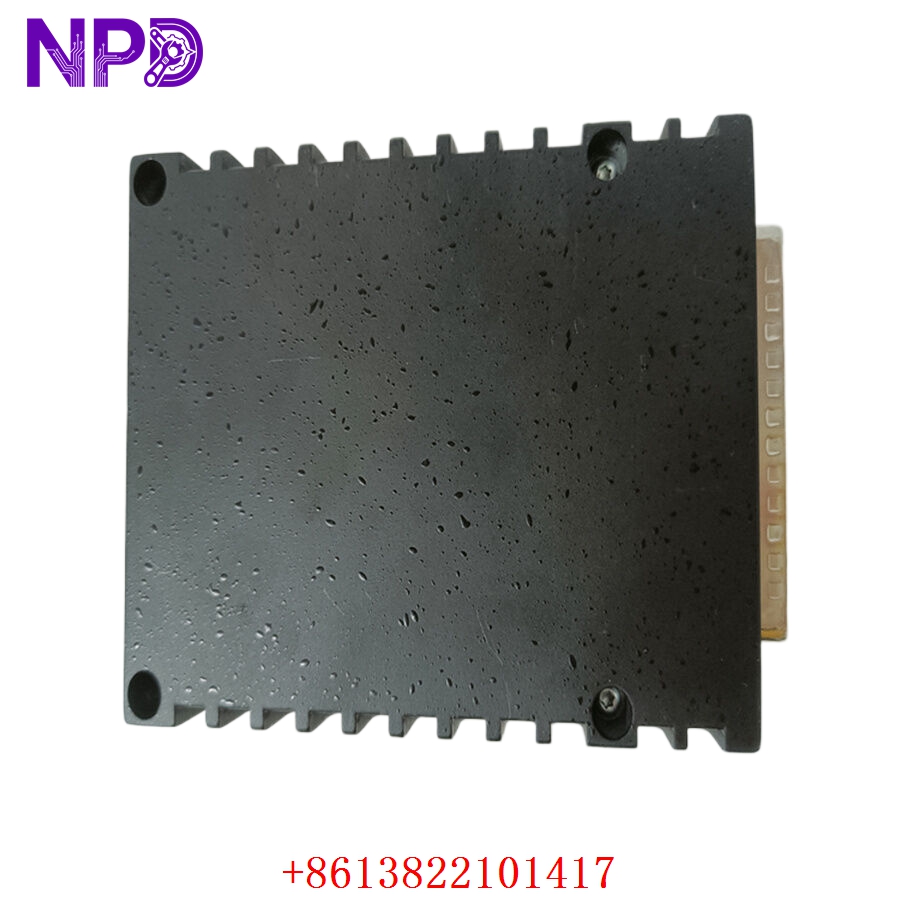

GE IS220PDIIH1B
Application Fields
The IS220PDIIH1B is widely deployed in critical power and industrial control sectors:
- Gas & Steam Turbine Control: Monitoring limit switches, emergency stop buttons, and safety interlocks for turbine protection.
- Power Generation Utilities: Managing status feedback from high-voltage switchgear, circuit breakers, and auxiliary relay signals.
- Large-Scale Compression Systems: Tracking critical operational status inputs in multi-stage centrifugal and reciprocating compressors.
- Industrial Manufacturing: Providing fast-response feedback in automated production sequences where precise timing and reliability are mandatory.
Product User Instructions
- Mounting and Integration: The I/O pack snaps securely onto a compatible Terminal Board (TB). Ensure the terminal board is properly mounted in the I/O rack and that the base is correctly indexed for this specific I/O pack type.
- Field Wiring: Connect field signals to the associated Terminal Board. Use shielded twisted-pair cabling to minimize electromagnetic interference (EMI). Ensure that the voltage levels applied to the inputs strictly adhere to the configured range (e.g., 24V vs 125V) to prevent permanent hardware damage.
- Network Setup: Once plugged into the terminal base, the module auto-negotiates on the Ethernet IONet. Use the GE ControlST™ configuration software to assign the module a unique I/O address and map the 24 input channels to your specific application logic.
- Status Monitoring: The faceplate features diagnostic LEDs. A steady “Link” LED indicates valid network connection, while “Status” and “Alarm” LEDs provide immediate visual verification of input channel activity and module health.
Frequently Asked Questions (Q&A)
Q1: What is the significance of the “H1B” suffix in the model number? A1: The “H1B” designation indicates the hardware revision level. It ensures compatibility with specific terminal boards and firmware versions within the Mark VIe ecosystem. Always refer to your system’s “As-Built” documentation to ensure the revision is compatible with your current rack configuration.
Q2: Can the IS220PDIIH1B be hot-swapped while the turbine is running? A2: Yes, the Mark VIe distributed I/O packs are designed for hot-swapping. However, always verify that the redundant I/O path is active and that your control cabinet safety protocols permit live maintenance before removing the module from the terminal board.
Q3: How do I troubleshoot an input channel that stays “Off” even when the field switch is closed? A3: First, check the field-side wiring and voltage at the terminal board block. If the field voltage is correct, use the ControlST software diagnostic screen to verify if the channel status is mapped correctly and check for any local “Not OK” diagnostic flags on the module itself.
