The ABB P3BDZ000398R1 is a mission-critical Redundancy Link Module (RLM) designed for high-availability process control systems. Serving as a dedicated synchronization bridge, this module ensures that primary and backup controllers remain in perfect lock-step. In industries where even a millisecond of downtime can lead to significant production loss or safety risks—such as oil and gas refining, chemical processing, and power generation—the P3BDZ000398R1 provides the necessary “heartbeat” monitoring and data mirroring.
This module is typically utilized within the ABB Ability™ System 800xA or AC800M controller families to facilitate a bumpless transfer between redundant pairs. By managing the high-speed fiber-optic or dedicated copper link, the P3BDZ000398R1 allows the standby controller to inherit the exact operational state of the primary unit instantaneously upon any detected failure.

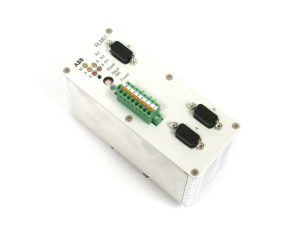

P3BDZ000398R1
📋 Technical Specifications & Module Data
The P3BDZ000398R1 is engineered for cabinet mounting, featuring a ruggedized exterior and specialized communication chipsets to handle high-frequency data synchronization.
| Specification Item | Technical Detail |
| Product Model | Redundancy Link Module |
| Global ID | P3BDZ000398R1 |
| Manufacturer | ABB |
| Function | Controller Synchronization & Failover |
| Communication Speed | Multi-Megabit Dedicated Link |
| Power Consumption | 24V DC, Nominal 0.5A |
| Isolation | Optical/Galvanic Protection |
| Redundancy Type | 1-out-of-2 (1oo2) Configuration Support |
| Operating Temp | −20C to +60C |
🛠️ Core Functional Features
- Bumpless Transfer Capability: The module ensures that the transition from a “Primary” to a “Standby” controller happens without any disruption to the field outputs, maintaining continuous control of the industrial process.
- Deterministic Synchronization: It utilizes a dedicated hardware-level link to mirror memory registers and I/O status, bypassing the standard control network to avoid latency and congestion.
- Self-Diagnostic Health Check: The P3BDZ000398R1 continuously monitors the integrity of the redundancy cable and the status of the remote module. Any degradation in the link quality is immediately flagged as a high-priority system alarm.
- Hot-Swap Support: Designed for high-uptime environments, the module can be replaced while the system is powered (on the healthy side of the redundant pair), allowing for maintenance without stopping the plant.
🌐 Industrial Infrastructure News (March 2026)
In March 2026, the global automation market is prioritizing “Zero-Trust Redundancy.” Recent cyber-physical security audits have highlighted the importance of dedicated, isolated hardware links like the P3BDZ000398R1. Unlike software-based redundancy, hardware-level link modules provide a physical air-gap for synchronization data, protecting the backup controller from network-borne attacks that might affect the primary unit.
Additionally, the trend of “Autonomous Plant Operations” is driving increased demand for redundant architectures. With fewer human operators on-site, the reliability of failover hardware has become the primary defense against unplanned outages. ABB has responded by integrating “Predictive Failover” analytics into their 2026 firmware updates, allowing the redundancy link to trigger a switchover based on early-warning signs of processor degradation rather than waiting for a total failure.
🔍 Related High-Availability Components
For maintaining or upgrading an ABB P3BDZ000398R1 system, the following associated modules are frequently required for a complete redundant setup:
| Product Model | Part Number | Category |
| ABB PM866K01 | 3BSE050198R1 | Processor Unit Kit |
| ABB BC810K02 | 3BSE031155R1 | CEX-Bus Interconnect |
| ABB CI854A | 3BSE030221R1 | PROFIBUS Interface |
| ABB TU810V1 | 3BSE013230R1 | Termination Unit |
| ABB RC400 | 3BSE013064R1 | Redundancy Cable Set |
