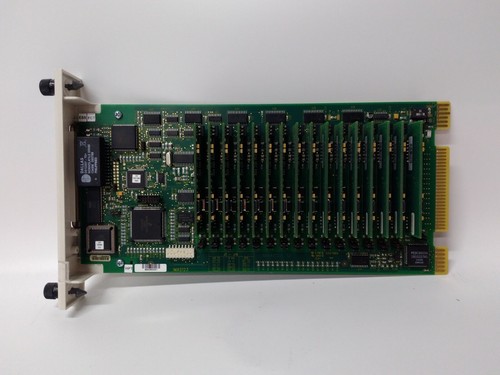

The ABB Bailey SPASI23 is a Slave Analog Input (ASI) module designed for the Symphony Plus and Harmony series Distributed Control Systems (DCS). This module serves as a high-density interface between field-level analog sensors and the central control unit. It is engineered to process up to 16 channels of analog signals, converting raw data from transmitters into digital values that the system can use for complex control logic. The SPASI23 is known for its rugged industrial design and high accuracy, making it a staple in power generation and heavy process industries that require reliable, long-term performance in demanding environments.
Technical Specifications
The following parameters define the operational profile of the SPASI23 module:
- Model Number: SPASI23
- Manufacturer: ABB (Bailey)
- Series: Symphony Plus / Harmony
- Number of Channels: 16 Analog Inputs
- Input Types: 4-20 mA, 1-5 VDC, 0-5 VDC, 0-10 VDC, or -10 to +10 VDC
- Resolution: 12-bit to 16-bit (depending on configuration)
- Dimensions: 177mm x 25mm x 298mm
- Weight: 0.58 kg
- Country of Origin: USA
- Power Consumption: +5 VDC at 250 mA (typical)
- Operating Temperature: 0 to +70 degrees Celsius
Application Fields
The SPASI23 module is a core component in large-scale automation architectures, particularly in:
- Power Plants: Monitoring boiler temperatures, steam pressures, and flow rates.
- Water and Wastewater: Integrating level sensors and chemical dosing transmitters.
- Petrochemical: Real-time acquisition of pressure and temperature data in refining processes.
- Steel Mills: Managing feedback loops for cooling systems and furnace controls.
Product Instructions and Handling
The SPASI23 is a “Slave” module, meaning it must be used in conjunction with a Master controller (such as an SPBRC410 or similar). It is designed to slide into a standard Symphony Plus or Harmony rack. Before installation, use the onboard jumpers or dip switches to configure the input type for each channel to match your field devices (e.g., current vs. voltage). Ensure the module is fully seated in the backplane to establish a secure connection with the I/O bus. Always handle the module using ESD-safe procedures, as the high-precision analog-to-digital converters (ADC) are sensitive to static electricity. When wiring, use shielded twisted-pair cables to prevent electromagnetic interference from distorting the signal accuracy.
Questions and Answers
Q: Can the SPASI23 be used as a standalone controller? A: No, the SPASI23 is a Slave I/O module. It requires a Master Controller to process the digitized data and execute control strategies.
Q: Does the SPASI23 support HART communication? A: Standard SPASI23 modules focus on pure analog signal acquisition. For HART digital diagnostics, specific HART-compatible versions or secondary modules in the Symphony Plus family are typically required.
Q: How do I know if a specific channel has failed? A: The module communicates its health status to the Master controller. Diagnostic alarms in the Symphony Plus human-machine interface (HMI) will flag “Open Loop” or “Module Error” if a channel or the internal ADC fails.
