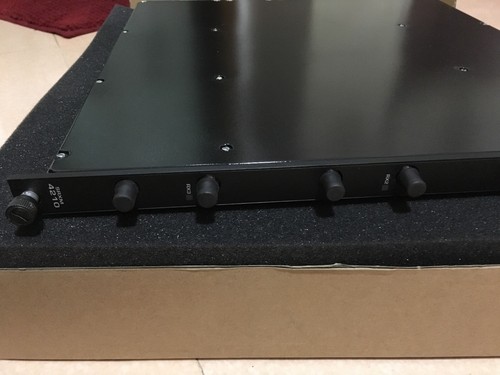

The Triconex 4210 is a Primary Remote Extender Module (RXM) used in the Triconex Triple Modular Redundant (TMR) safety system. Its purpose is to extend the I/O bus from the main chassis to remote expansion chassis located at significant distances. By utilizing single-mode fiber optic technology, the 4210 allows for the deployment of I/O modules up to 7.5 miles (12 kilometers) away, making it indispensable for large-scale industrial sites like refineries, chemical parks, and offshore platforms.
Product Specifications
Technical Parameters
- Model Identification: 4210 / 4210-3
- Manufacturer: Triconex (Schneider Electric)
- Module Type: Primary Remote Extender Module (RXM)
- Fiber Type: Single-mode Fiber Optic
- Transmission Rate: 375 Kbit/s (consistent with the Tricon I/O bus)
- Maximum Distance: 12 kilometers (7.5 miles)
- Connectors: 6 ports per module (ST-style connectors)
- Redundancy: TMR (Triple Modular Redundant) architecture; operates in a set of three.
Physical Datasheet
- Dimensions: 490mm x 453mm x 68mm
- Weight: 2.75 kg (approx. 6.06 lbs)
- Country of Origin: USA
- Operating Temperature: -20°C to +60°C
- Indicators: PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3
Application Fields
The 4210 is critical for distributed safety-instrumented systems (SIS):
- Distributed I/O: Connecting remote satellite instrument houses to a centralized control room.
- Oil & Gas Refineries: Managing safety interlocks across widely separated processing units.
- Power Grids: Extending high-integrity control logic to remote substations.
- Offshore Platforms: Linking wellhead control modules to the main platform logic over long-distance undersea fiber links.
Product Usage Instructions
- Chassis Location: The 4210 Primary RXM must be installed in the Main Chassis or an Expansion Chassis located within 30 meters (100 feet) of the Main Processors.
- TMR Setup: In a Tricon system, you must use three identical 4210 modules to maintain the system’s triple-redundant integrity.
- Optical Connections: Use six single-mode fiber optic cables to connect the Primary RXM (4210) to the Remote RXM (typically the 4211 module). These cables handle the transmit/receive duties for channels A, B, and C.
- Fiber Care: Ensure ST connectors are cleaned with isopropyl alcohol before insertion. Do not exceed the minimum bend radius of the fiber optic cable to avoid signal attenuation.
- Status Monitoring: During operation, the ACTIVE LED should be illuminated. If the FAIL LED lights up, check the fiber link integrity and the diagnostic logs in TriStation 1131.
Q&A – Frequently Asked Questions
Q: Can I use multi-mode fiber with the 4210?
A: No. The 4210 is specifically designed for single-mode fiber to achieve long-distance transmission. For shorter distances using multi-mode fiber, a different RXM model (like the 4200) would be required.
Q: Does the 4210 support hot-swapping?
A: Yes. Like most Triconex modules, the 4210 supports hot-swapping. You can replace a faulty module while the system is online without interrupting the safety logic or the process.
Q: Where can I check for current stock and lead times for the 4210?
A: For official quotes, expedited shipping, and refurbished unit availability, please visit our Triconex 4210 Remote Extender Inquiry Page.
Product Related News
In the 2026 industrial safety market, the Triconex 4210 remains a core component for “Future-Proofing” large-scale distributed architectures. As industrial facilities transition toward Integrated Control and Safety Systems (ICSS), the ability to bridge long distances with fiber optics while maintaining SIL 3 certification is paramount. Schneider Electric continues to support the 4210 as part of its commitment to the long-term reliability of the Tricon platform. Recent field updates suggest that integrating 4210 modules with modern fiber-optic diagnostic tools allows maintenance teams to detect “dark fiber” degradation before it impacts system availability, further enhancing the predictive maintenance capabilities of the modern plant.
