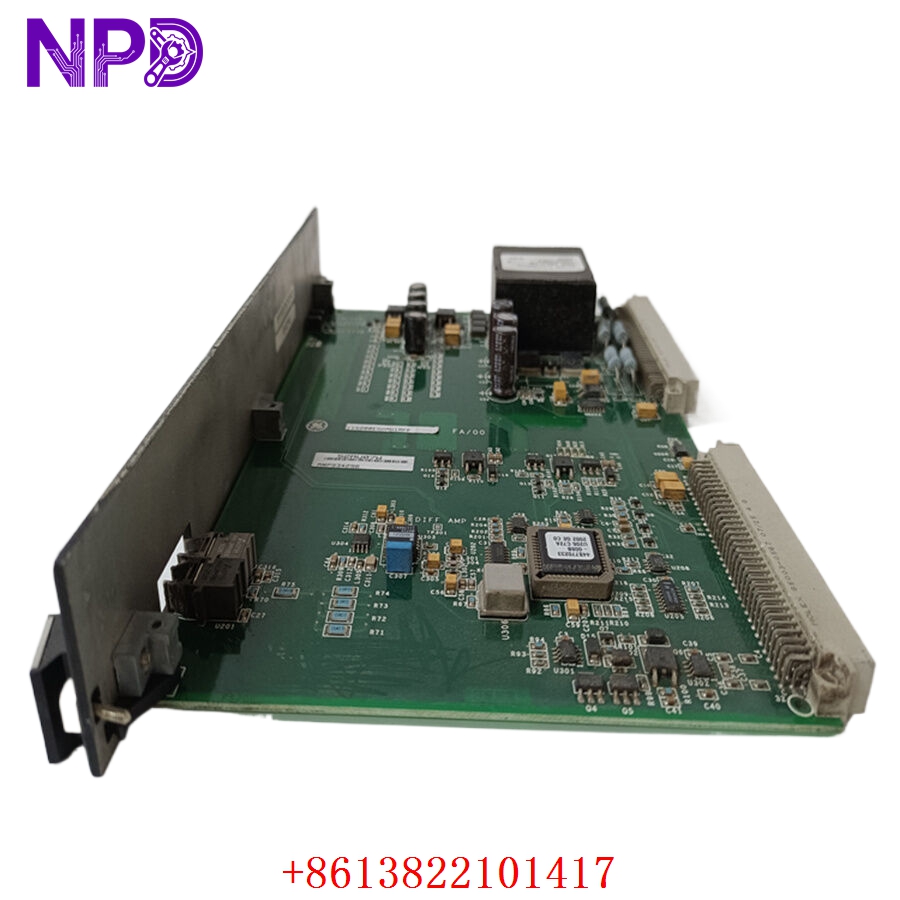

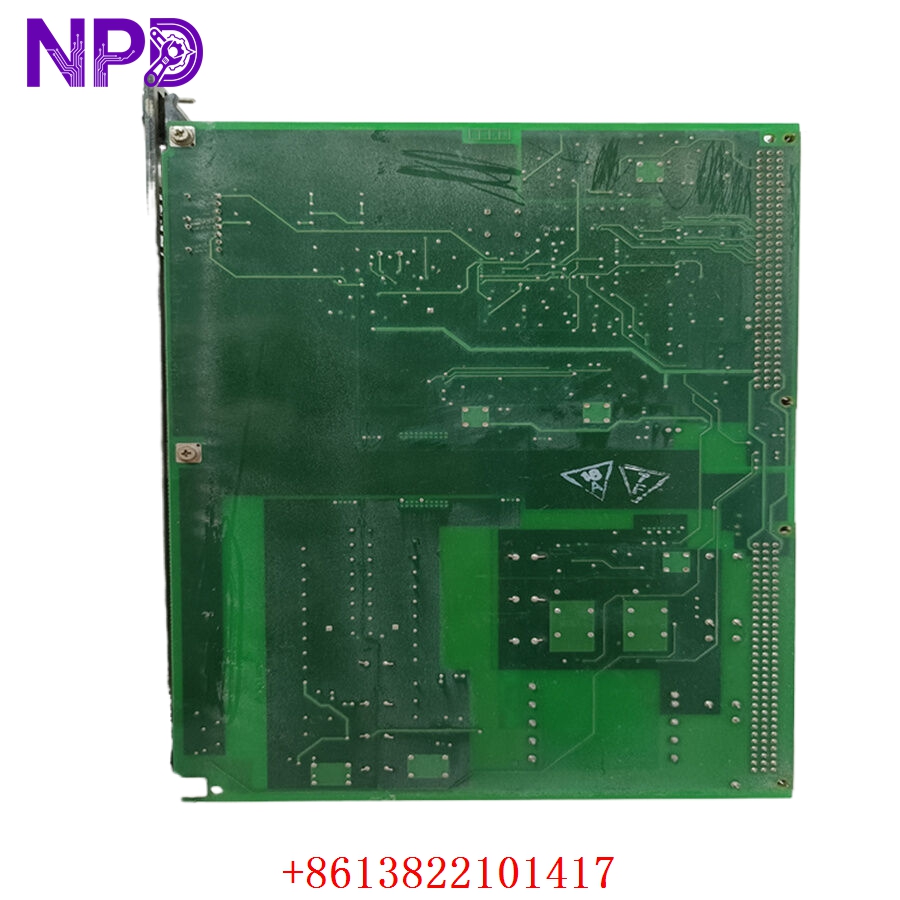

GE IS200EGDMH1AFF Gate Driver Module

Description

Model: IS200EGDMH1AFF

· Brand: GE (General Electric)

· Series: Mark VIe Control System

· Core Function: ⚙️ Provides gate drive signals for high-power IGBTs in turbine power conversion systems

· Product Type: 📟 Gate Driver Module (IGBT Driver)

· Key Specs: 🛠️ High-speed fiber-optic signal isolation, fault feedback, precise timing control

• Technology: IGBT Gate Driver circuitry with integrated protection
• Communication: Fiber-optic link for EMI-immune signal transmission
• Fault Feedback: Monitors Vce (de-sat), temperature, and power supply health
• Mounting: Direct mount to IGBT power block/stack
• Operating Temp: Rated for high-temperature turbine control cabinets
• Diagnostic Features: LED status for gate drive state and fault latching
• Safety: Galvanic isolation between control logic and power stack

Application Scenarios & Engineering Insights

The IS200EGDMH1AFF is a critical component in GE Mark VIe turbine control systems, specifically managing the switching of power modules in variable frequency drives or static starters. A significant “pain point” here is the fiber-optic connection. Because these links carry the gate trigger signals, any microscopic dust on the fiber tip can lead to “Gate Drive Faults” that are notoriously difficult to track down. Always inspect fiber tips with a scope before assuming the board has failed.

Typical Use Cases:

1. Energy – Turbine Static Starter

   Managing the soft-start of large gas turbine generator sets.

2. Power Generation – Excitation Systems

   Controlling the field current of the generator for precise voltage regulation.

3. Heavy Industry – High-Power VFDs

   Regulating high-torque motor speed in critical compressor or pump applications.

Troubleshooting Pro-Tip:

When you see an “EGDM Fault,” don’t automatically pull the board. GE’s turbine control diagnostic software (ToolboxST) is very granular. Check the Diagnostic Buffer in the controller—it will specifically tell you if the fault is an “Undervoltage Trip,” “Overcurrent/Desaturation,” or a “Loss of Fiber Link.” That single piece of data saves hours of troubleshooting time.

Compatible Replacement Models

Note: Due to the tight timing requirements in GE turbine controls, I only recommend using verified genuine GE boards. Counterfeit or improperly repaired gate drivers can lead to IGBT destruction during high-power switching.

Troubleshooting Quick Reference

Safety Warning: You are working with high-power IGBT stacks. Ensure the DC link is fully discharged (use a voltmeter to confirm < 50 V DC) before touching any gate driver connections. A discharge event from a capacitor bank through a gate driver can be fatal.
